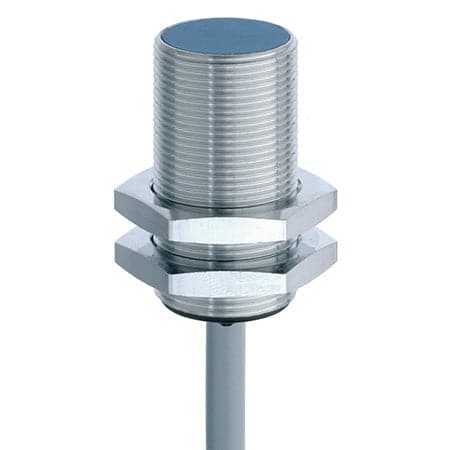

DW-AD-603-M18-718
| Operating range | 5 mm |
| Switching frequency max. | 2000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -40...+100°C |
| Sensor Height | 35 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
Inductives Sensor Extra-temperature-Classics-Series-600-M18-Embeddable-5-mm DW-AD-603-M18-718
Extra temperature Classics Series 600 M18 Embeddable 5 mm
SKU: DW-AD-603-M18-718
Regular price
$120.25
Secure Checkout
Need help? Click here to contact an expert
