Short Specifications

DW-AD-503-065E

Operating range 2.5 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 20 bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PUR, 2 m, 3 wire
Housing size [mm] Ø 6.5
Enclosure rating IP 68
Housing material Stainless-steel V2A
Temperature range -25...+70°C
Sensor Height 45 mm
Mounting Embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

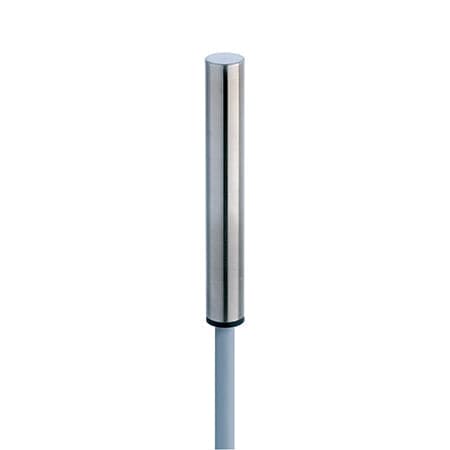

Extra pressure Extra Distance Series 500 Ø 6.5 Embeddable 2.5 mm

SKU: DW-AD-503-065E

Connection: PUR, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length and Mounting Type: 45 mm | Straight
Price:
Sale price$124.70
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
