Short Specifications


Operating range 0.6...10 mm
Switching frequency max. 140 Hz
Supply voltage 18...30
Operating pressure [bar] ≤ 60 bar
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Repeatability < 0.03 mm
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V2A
Resolution 15 µm
Temperature range -25...+70°C
Sensor Height 63.5 mm
Mounting Embeddable
Interface IO-Link
Sensing range max. 0...11 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

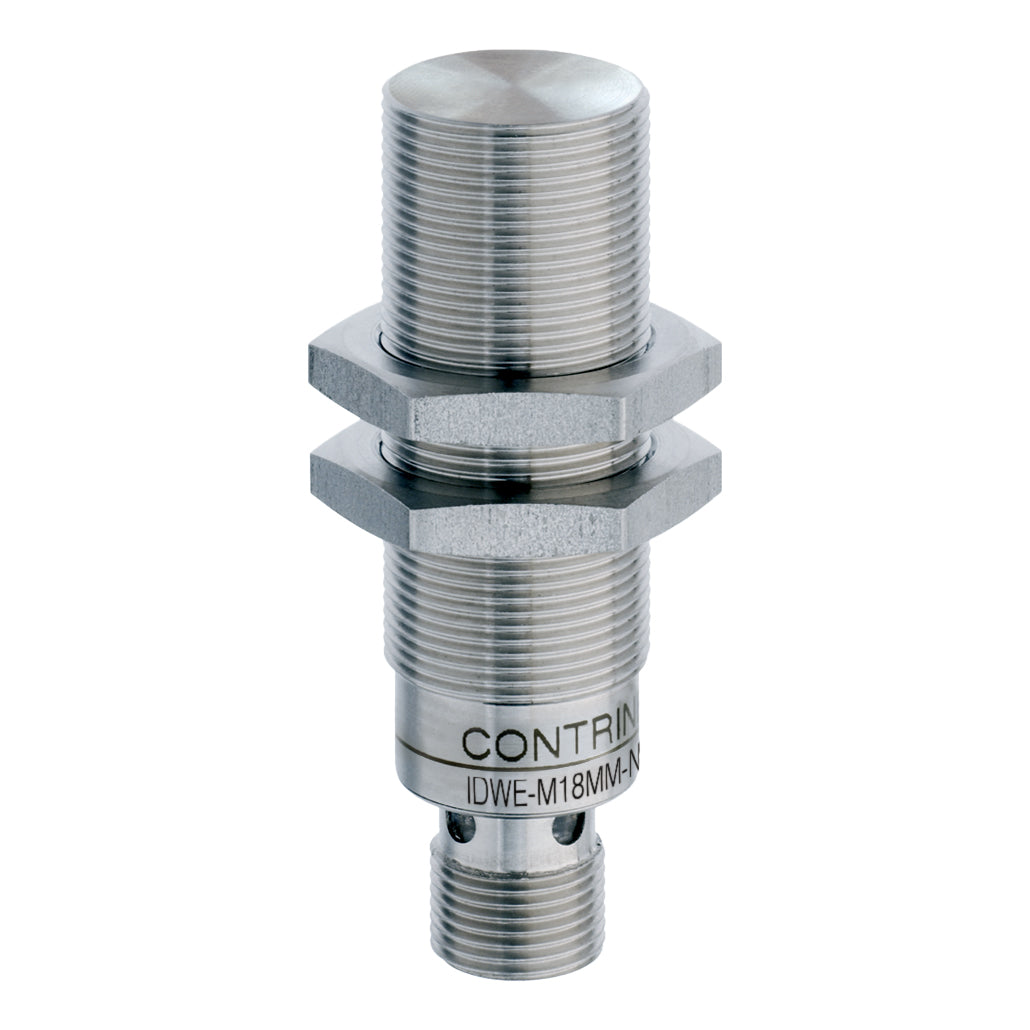

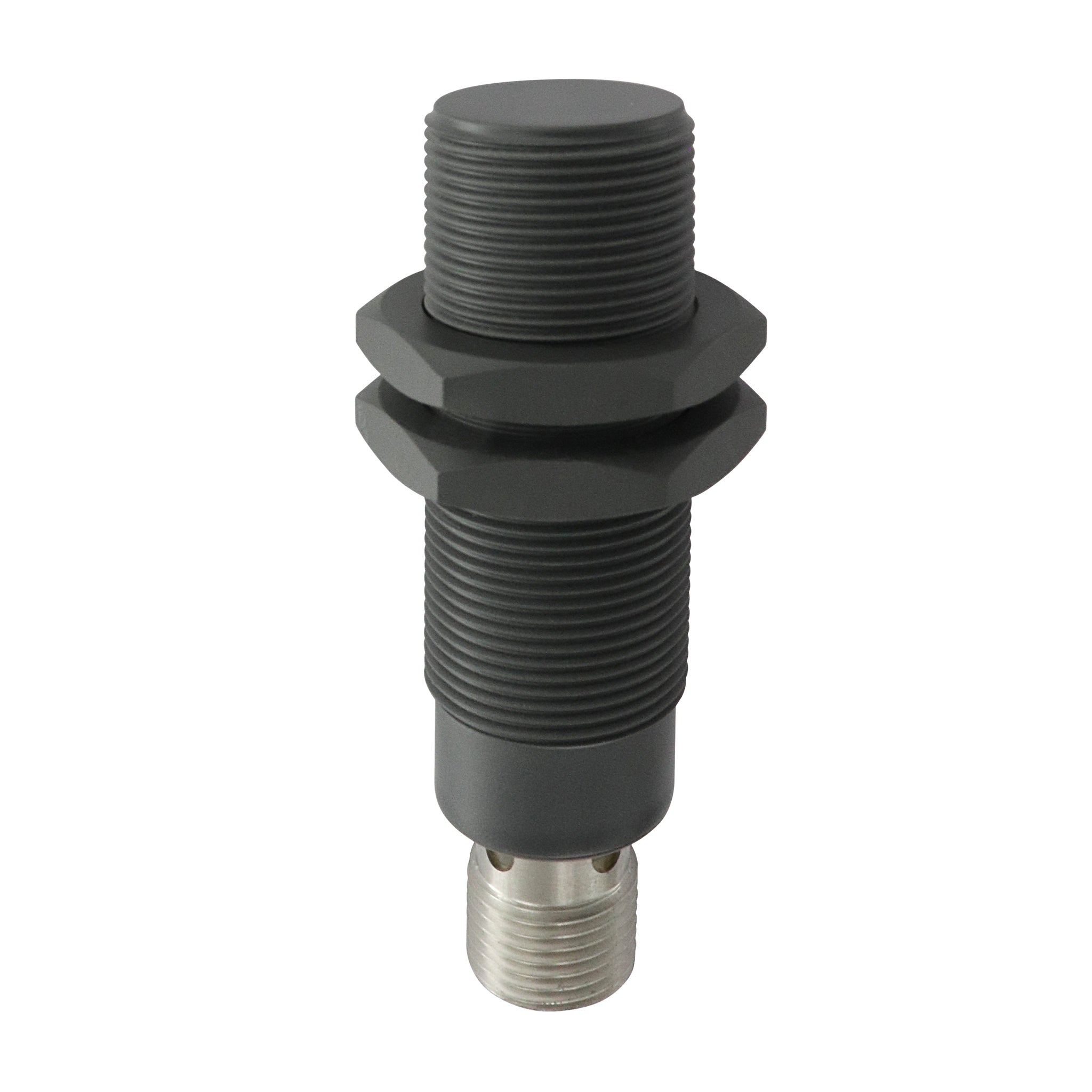

DMS Smart 0.6...10 mm


Connection and Mounting: M12 4-pin|Embeddable
Polarity and Output: PNP|OSS1/IO-Link + OSS2/INPUT
Sensor length: 63.5 mm
Sale price$196.75
In stock

Estimated Delivery Time 2-3 weeks
