Short Specifications

IDWE-M12MM-NMS-A0

Operating range 0.4...6 mm
Switching frequency max. 140 Hz
Supply voltage 18...30
Operating pressure [bar] ≤ 80 bar
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Repeatability < 0.02 mm
Connection M12 4-pin
Housing size [mm] M12
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V2A
Resolution 10 µm
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Embeddable
Interface IO-Link
Sensing range max. 0...6.6 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

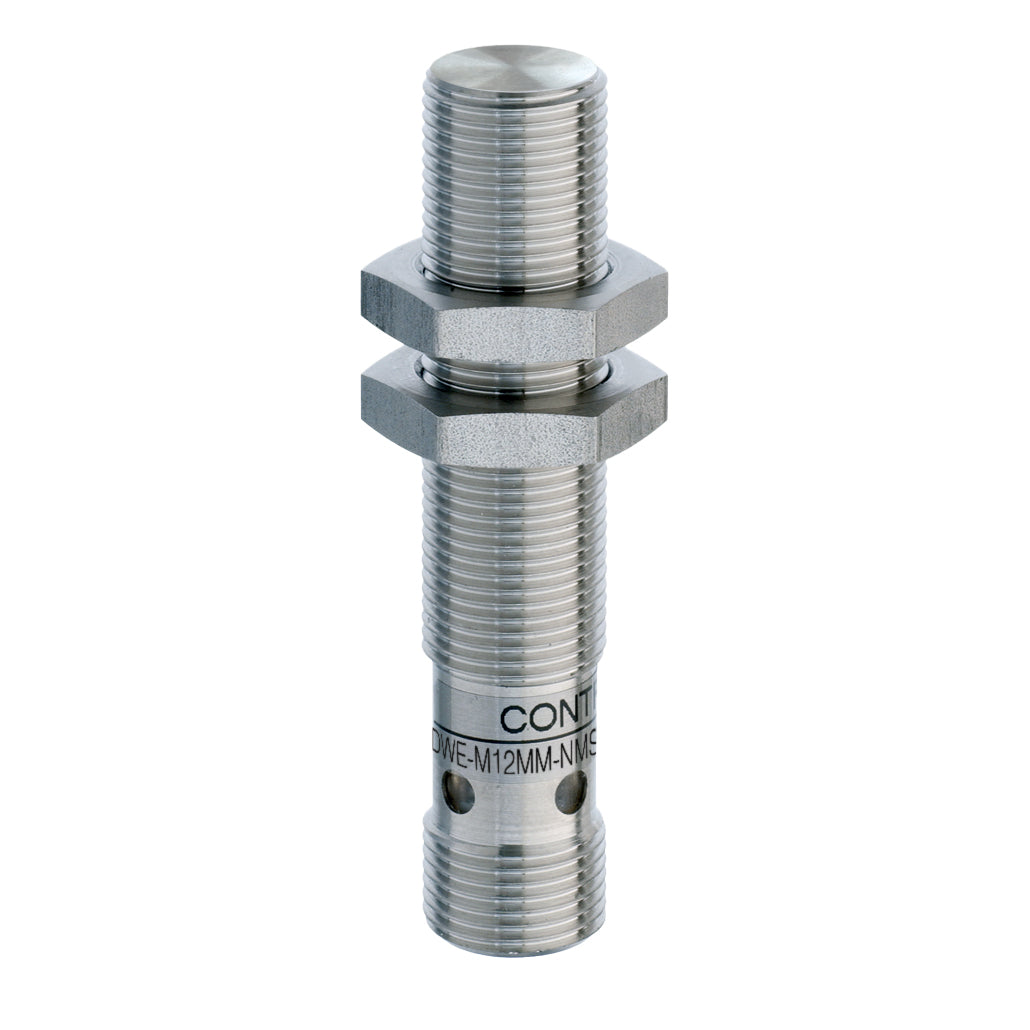

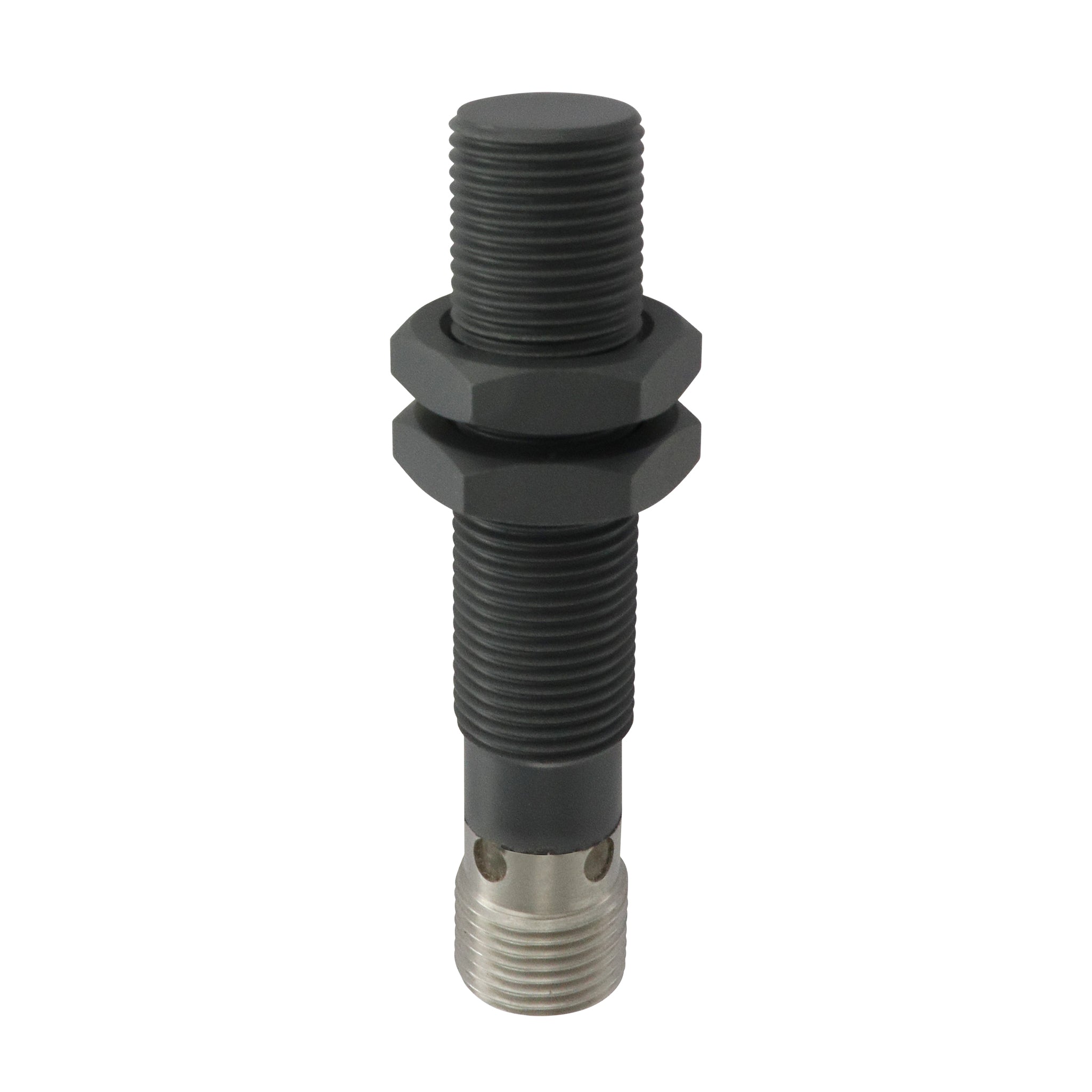

DMS Smart 0.4...6 mm

SKU: IDWE-M12MM-NMS-A0

Connection and Mounting: M12 4-pin|Embeddable
Polarity and Output: PNP|OSS1/IO-Link + OSS2/INPUT
Sensor length: 60 mm
Price:
Sale price$158.10
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
