Short Specifications


Operating range 0...10 mm
Switching frequency max. 125 Hz
Supply voltage 18...30
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Repeatability < 0.006 mm
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Resolution 4 µm
Temperature range -25...+70°C
Sensor Height 63.5 mm
Mounting Quasi-embeddable
Interface IO-Link
Sensing range max. 0...11 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

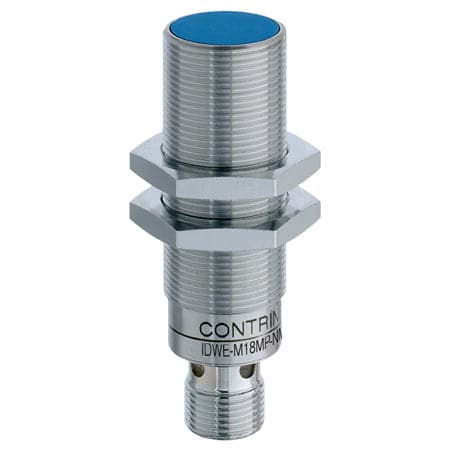

DMS Smart 0...10 mm


Connection and Mounting: M12 4-pin|Quasi-embeddable
Polarity and Output: PNP|OSS1/IO-Link + OSS2/INPUT
Sensor length: 63.5 mm
Sale price$164
In stock

Estimated Delivery Time 2-3 weeks
