IDSN-M30AA-NMS-A0
| Operating range | 1...12 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...12 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|

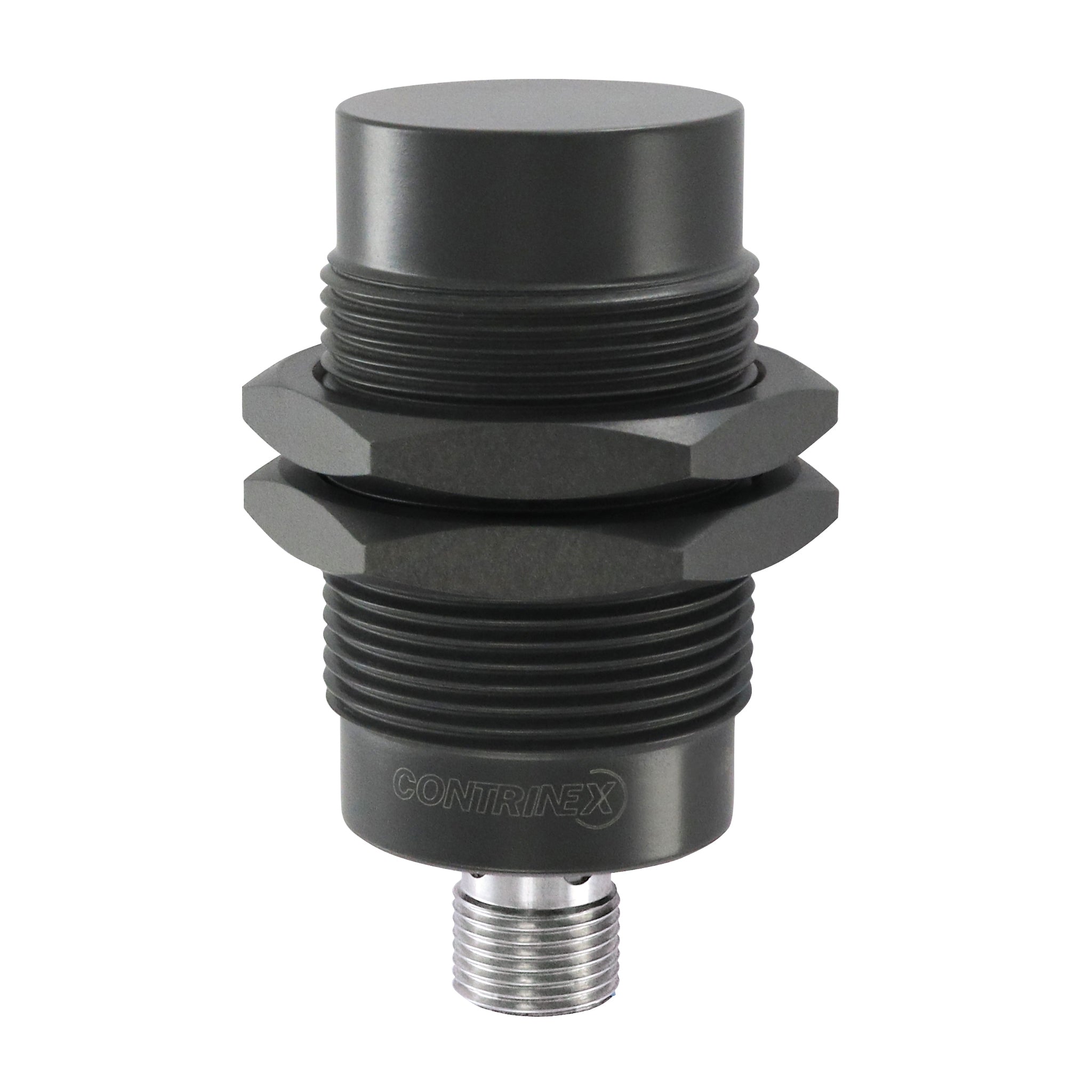

Inductives Smart Sensor DMS-Double-Sheet-PocketCodr-Config-Smart-M30 IDSN-M30AA-NMS-A0
DMS Double Sheet PocketCodr Config Smart M30
SKU: IDSN-M30AA-NMS-A0
Smart double sheet detection sensor for reliable detection across a wide range of materials and thicknesses. Easily teachable for optimal performance in your application. Configuration is handled via the PocketCodr teach widget, including access to a curated material database. Requires an active PocketCodr “Application” subscription.
Regular price
From $1,395.14
Secure Checkout
Need help? Click here to contact an expert
IDSN-M30AA-NMS-A0
| Operating range | 1...12 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...12 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
Inductives Smart Sensor DMS-Double-Sheet-PocketCodr-Config-Smart-M30 IDSN-M30AA-NMS-A0
