IDSN-M18AA-NMS-A0-136
| Operating range | 3...5 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Operating principle | Double-sheet detection |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
| Softwares |
|
Inductives Smart Sensor DMS-Double-Sheet-IO-Link-Config-Smart-M18 IDSN-M18AA-NMS-A0-136

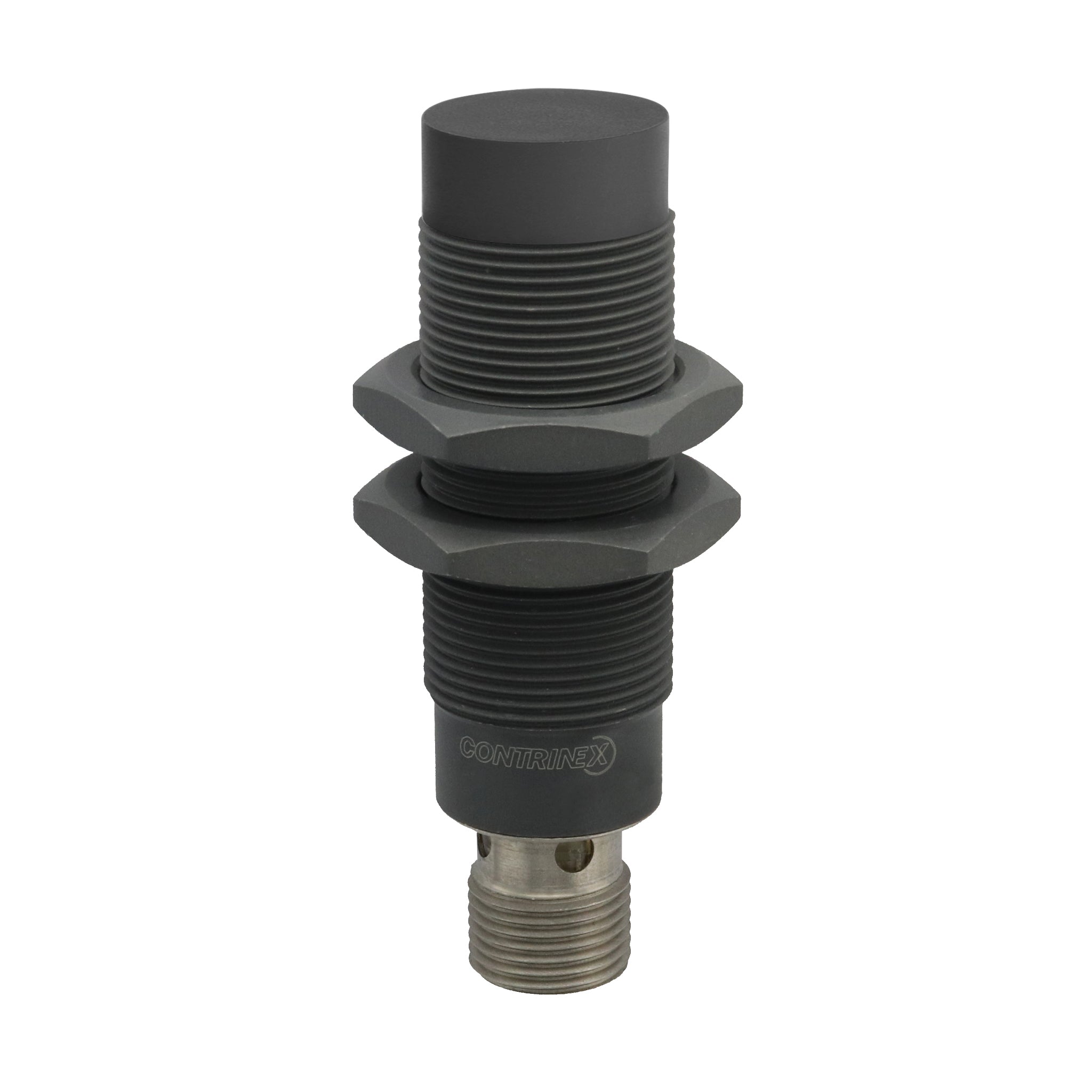

DMS Double Sheet IO Link Config Smart M18
SKU: IDSN-M18AA-NMS-A0-136
Smart double sheet detection sensor for flexible detection across a wide range of materials and thicknesses. Fully configurable via IO-Link (v1.1.4) with any standard master. Stores up to 15 material configurations directly in the sensor. Enables real-time recipe selection and teach via process data for seamless PLC integration
Regular price
$2,000.00
