Short Specifications


Operating range 20...80 mm
Switching frequency max. 1000 Hz
Sensing Linearity ± 0.4 mm
Supply voltage 13...30
Repeatability < 0.4 mm
Polarity NPN
Output Light-on/Dark-on + 1...10 V
Sensitivity adjustment Teach button
Connection M8 4-pin
Housing size [mm] 20 x 34 (C23)
Enclosure rating IP 67 / IP 69K
Housing material ABS
Resolution 0.12 mm
Temperature range -20...+60°C
Light source LED, red 632 nm
Interface Standard output
Operating principle Distance diffuse


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

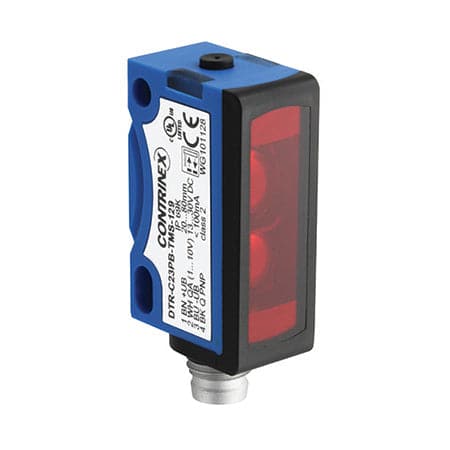

Distance Distance diffuse 20 x 34 (C23) 20...80 mm ABS Teach button LED, red 632 nm


Connection: M8 4-pin
Output: Light-on/Dark-on + 1...10 V
Polarity: NPN
Sale price$226.05
Re-stocking soon

Estimated Delivery Time 2-3 weeks
