Short Specifications

DTL-C23PB-TMS-139-501

Operating range 20...100 mm
Switching frequency max. 1000 Hz
Sensing Linearity ± 0.25 mm
Supply voltage 13...30
Repeatability < 0.25 mm
Polarity PNP/NPN auto-detect
Output Light-on/Dark-on + 1...10 V
Sensitivity adjustment Teach button
Connection M8 4-pin
Housing size [mm] 20 x 34 (C23)
Enclosure rating IP 67 / IP 69K
Housing material ABS
Resolution 0.12 mm
Temperature range -20...+60°C
Light source Laser class 1, red 650 nm
Operating principle Distance diffuse

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

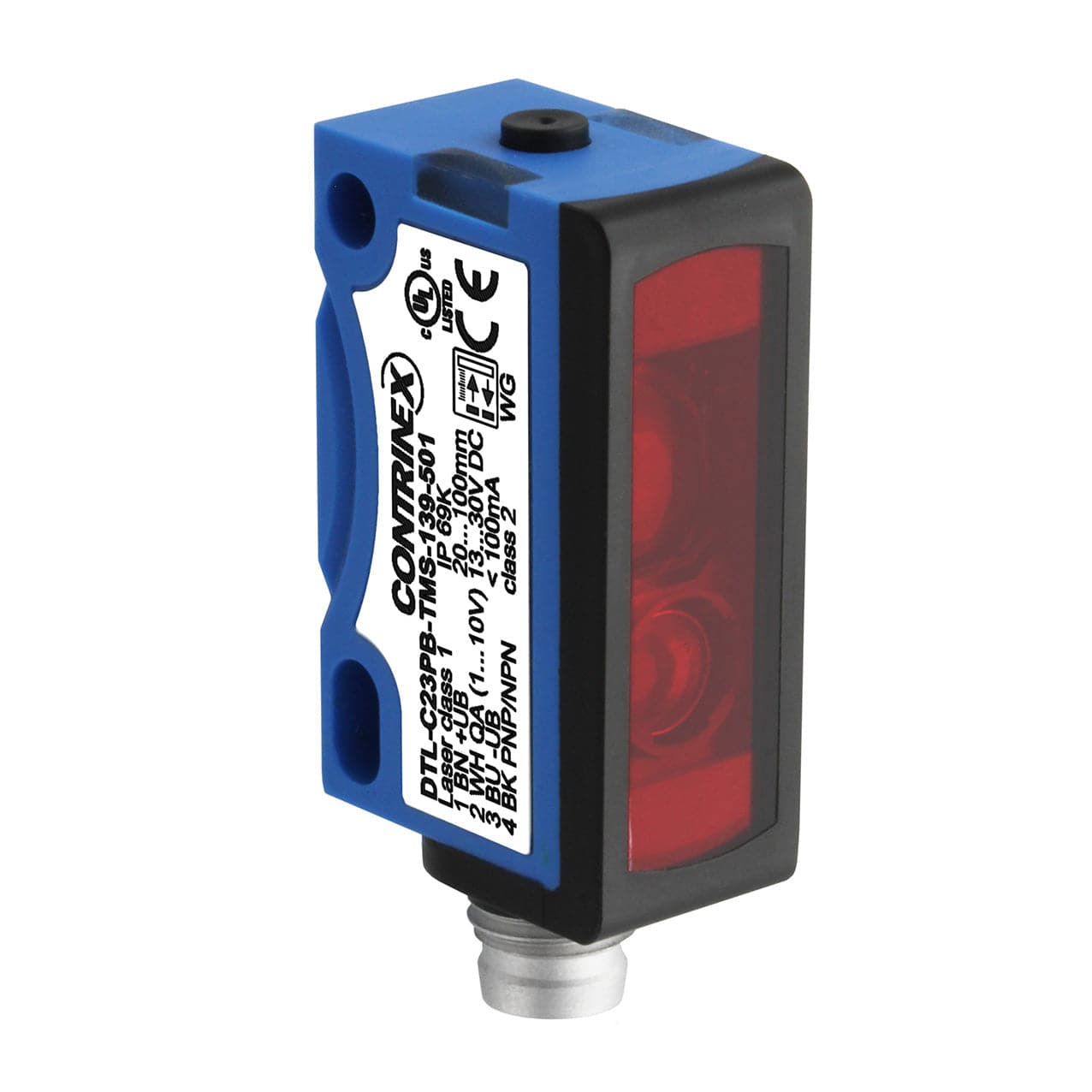

Distance Distance diffuse 20 x 34 (C23) 20...100 mm ABS Teach button Laser class 1, red 650 nm

SKU: DTL-C23PB-TMS-139-501

Connection: M8 4-pin
Output: Light-on/Dark-on + 1...10 V
Polarity: PNP/NPN auto-detect
Price:
Sale price$282.26
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
