CSS-1080-103
| Operating range | 1.5 mm |
| Switching frequency max. | 50 Hz |
| Polarity | PNP, antivalent |
| Connection | M8 3-pin |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 5 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|

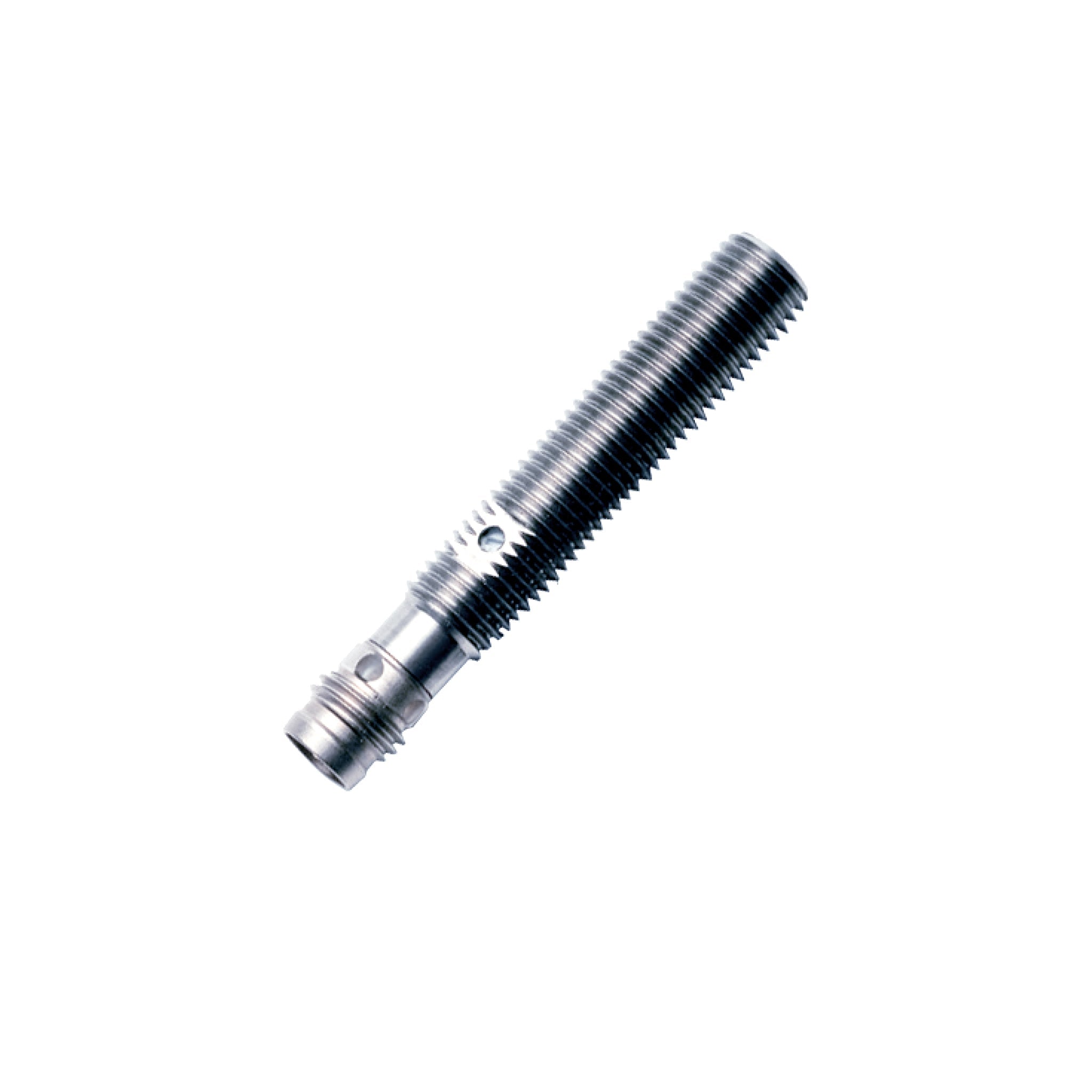

Capacitive Sensor Capacitive-M8 CSS-1080-103
Capacitive M8
SKU: CSS-1080-103
Regular price
$285.71
Secure Checkout
Need help? Click here to contact an expert
CSS-1080-103
| Operating range | 1.5 mm |
| Switching frequency max. | 50 Hz |
| Polarity | PNP, antivalent |
| Connection | M8 3-pin |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 5 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
Capacitive Sensor Capacitive-M8 CSS-1080-103
