CSS-1300-103
| Operating range | 10 mm |
| Switching frequency max. | 150 Hz |
| Polarity | PNP, antivalent |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 81 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
Capacitive Sensor Capacitive-M30 CSS-1300-103

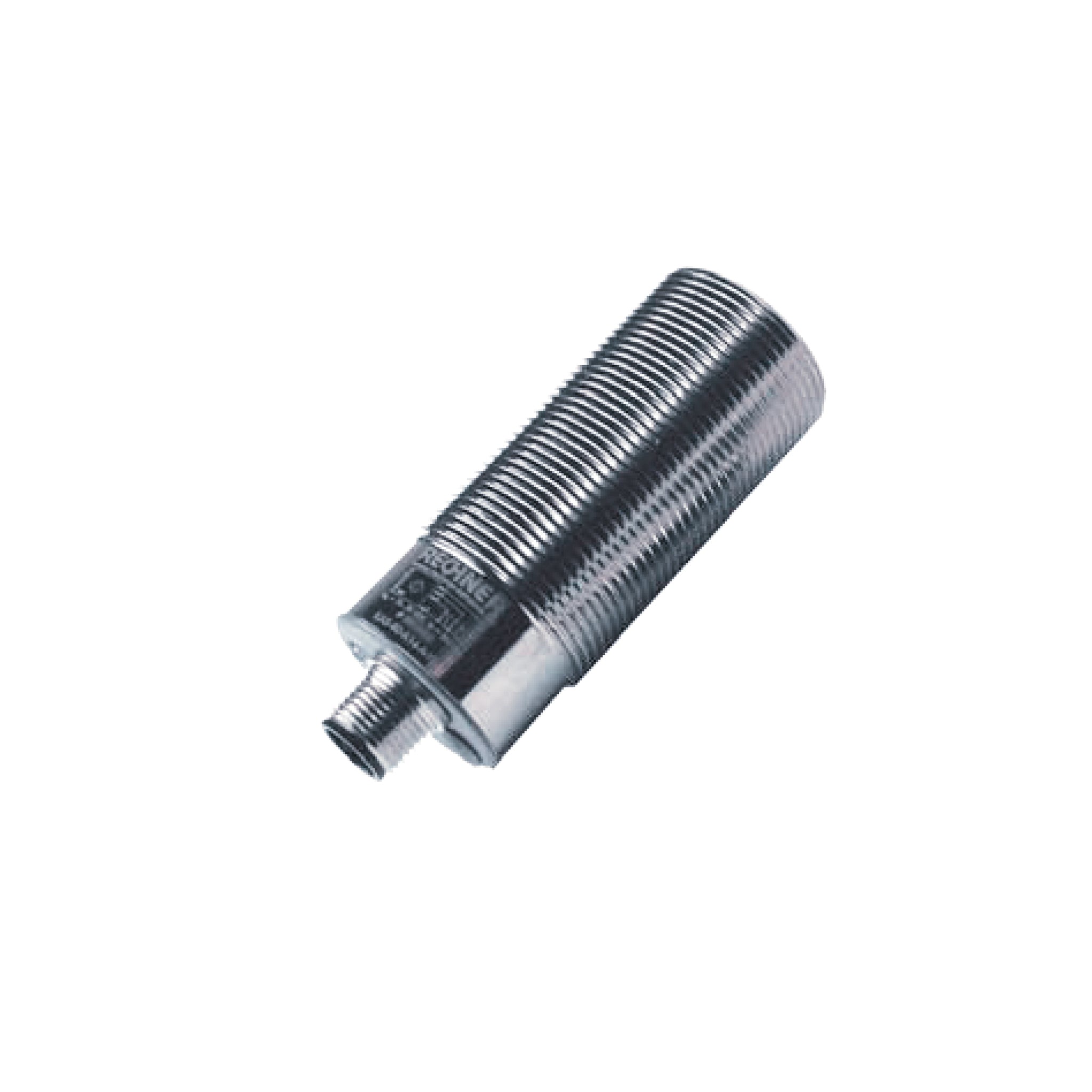

Capacitive M30
SKU: CSS-1300-103
Regular price
$245.70
Secure Checkout
Need help? Click here to contact an expert
CSS-1300-103
| Operating range | 10 mm |
| Switching frequency max. | 150 Hz |
| Polarity | PNP, antivalent |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 81 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
Capacitive Sensor Capacitive-M30 CSS-1300-103
