Short Specifications



Operating range 0
Supply voltage 10...30
Polarity PNP
Output Light-on/IO-Link + Test input
Sensitivity adjustment No
Connection M12 4-pin
Housing size [mm] 20 x 30 (C23)
Enclosure rating IP 67
Housing material Stainless-steel V2A
Sensitivity Range Adjustm 30...300 mm
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface IO-Link
Operating principle Through-beam emitter
Sensing range max. 0...30000 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

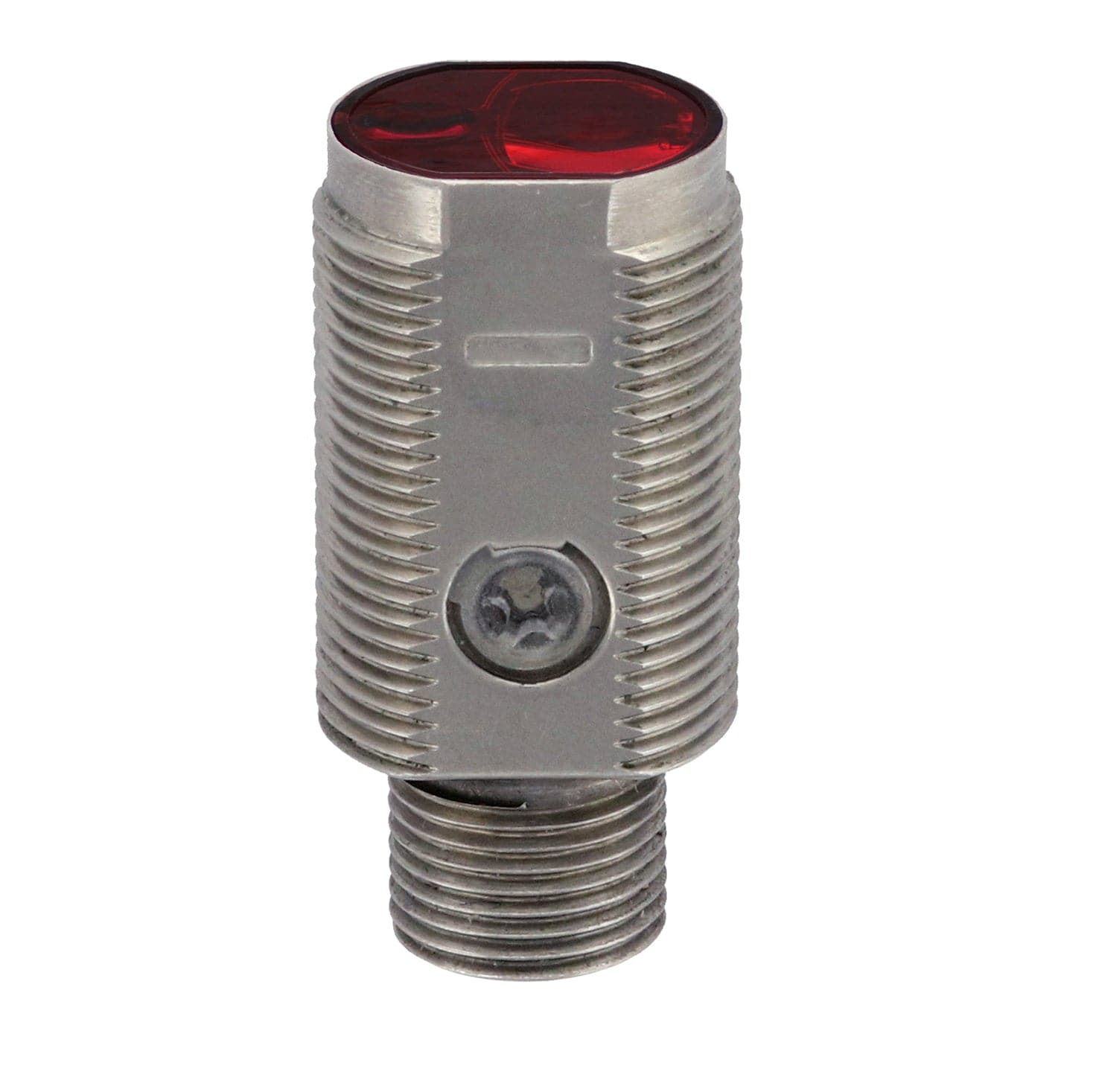

Basic Smart Through beam emitter 0...25000 mm Stainless steel V2A No LED, red 630 nm


Connection and Mounting: M12 4-pin
Output: Light-on/IO-Link + Test input
Polarity: PNP
