Short Specifications



Operating range 0…8000 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on/IO-Link + Dark-on
Sensitivity adjustment IO-Link only
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface IO-Link
Operating principle Through-beam
Sensing range max. 0...30000 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

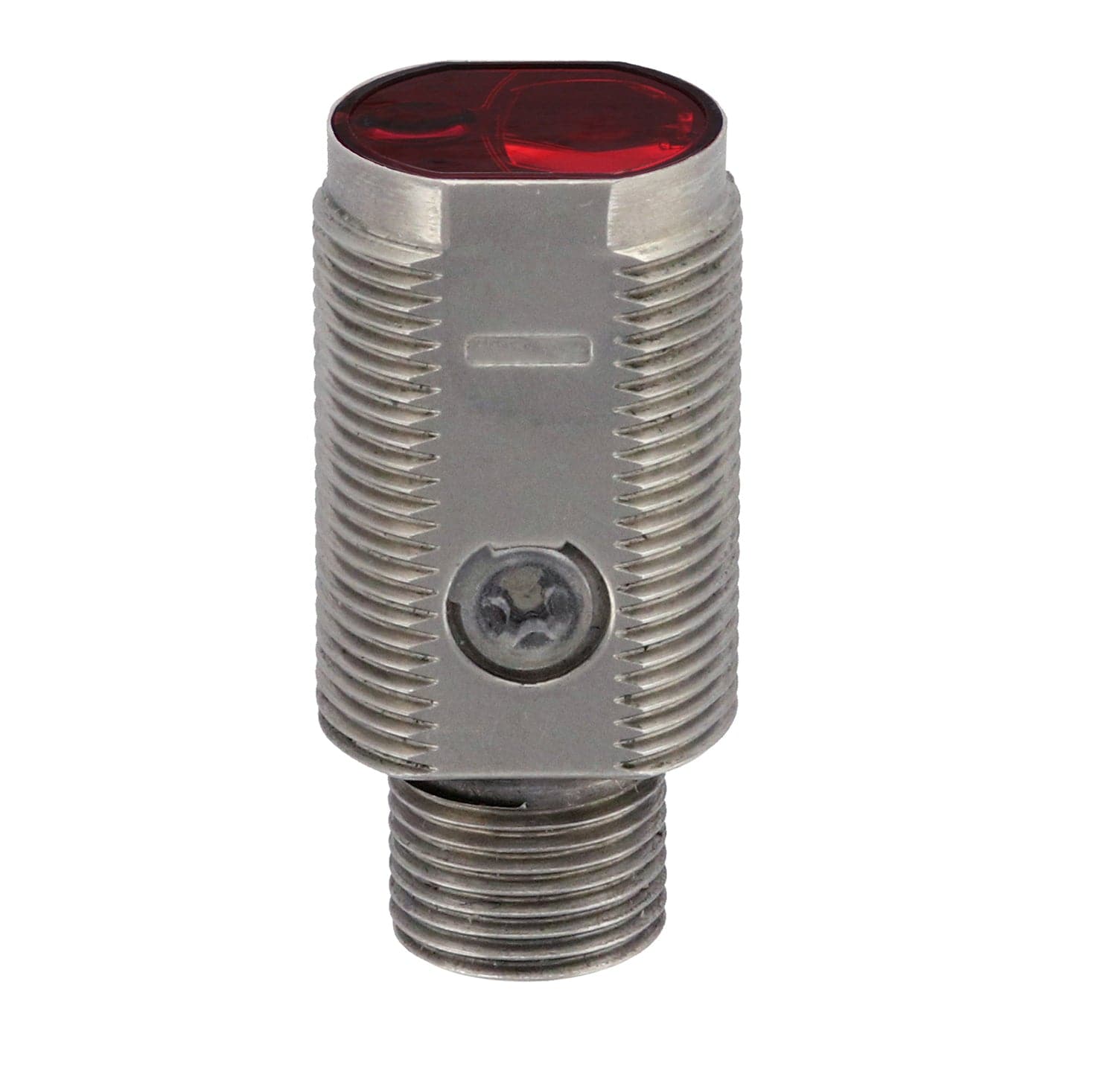

Basic Smart Through beam 0...25000 mm Stainless steel V2A IO Link only LED, red 630 nm


Connection and Mounting: M12 4-pin
Output: Light-on/IO-Link + Dark-on
Polarity: PNP
