Preliminary
ISHR-C23MP-NMS-A0
| Operating range | 0…300 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Light-on/IO-Link + Stability alarm |
| Sensitivity adjustment | IO-Link only |
| Connection | M8 4-pin |
| Housing size [mm] | 20 x 30 (C23) |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 30...300 mm |
| Temperature range | -25...+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Background suppression |
| Sensing range max. | 10...300 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|

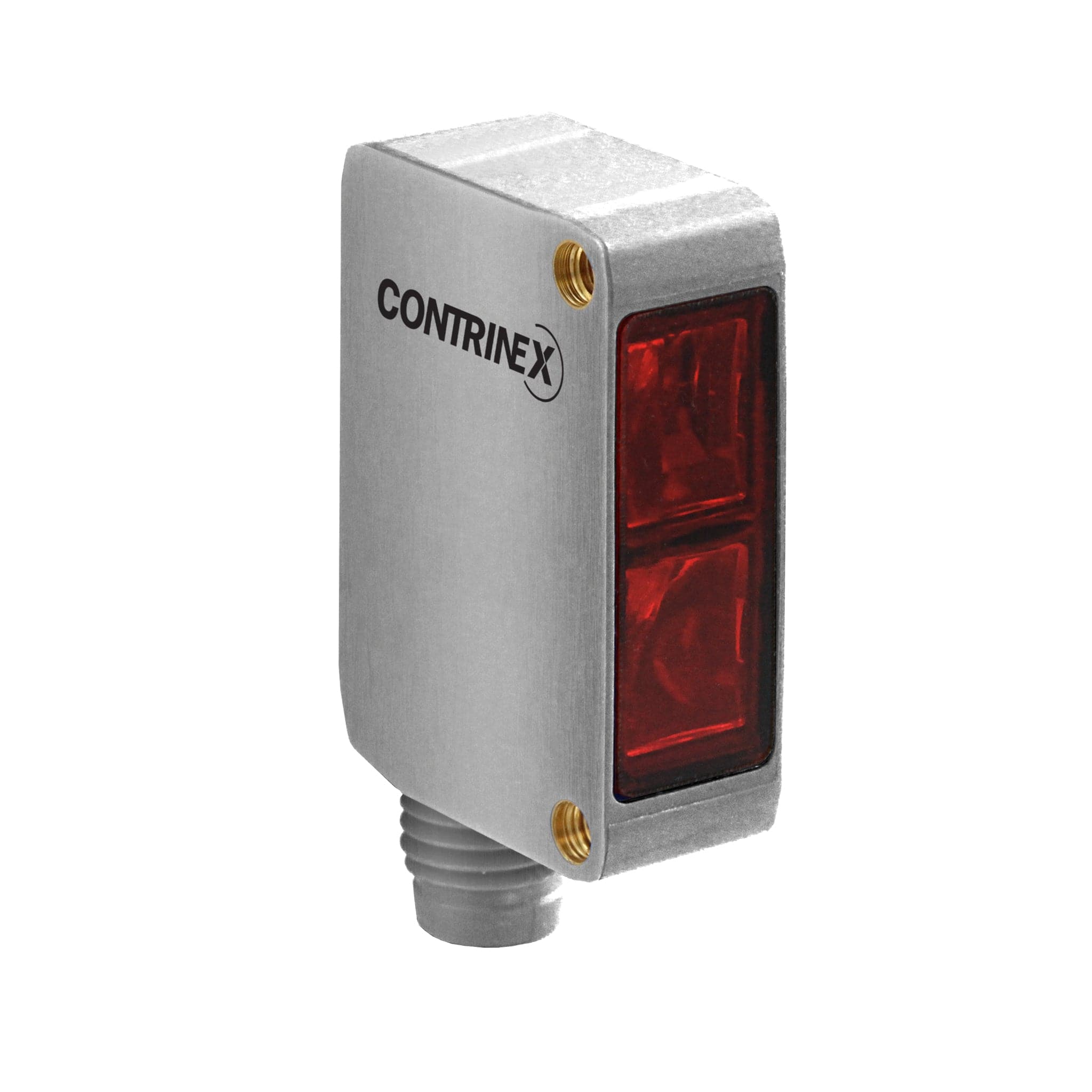

Basic Smart Background suppression 15...250 mm ABS IO Link only Pinpoint LED, red 640 nm
SKU: ISHR-C23MP-NMS-A0
