Short Specifications



Operating range 0...250 mm
Switching frequency max. 500 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on/IO-Link + Dark-on
Sensitivity adjustment IO-Link only
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+65°C
Light source Pinpoint LED, red 640 nm
Interface IO-Link
Operating principle Background suppression
Sensing range max. 10...250 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

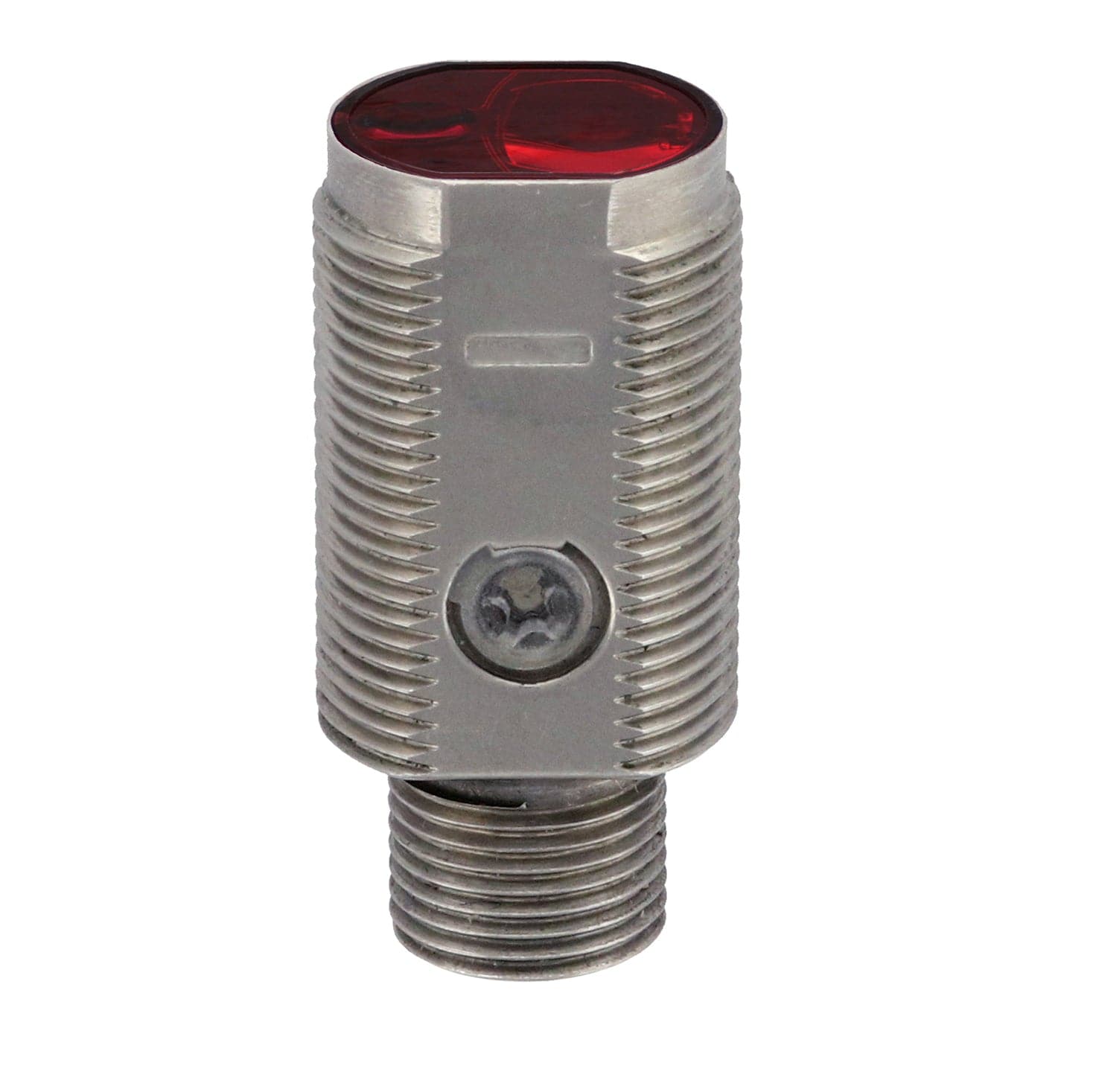

Basic Smart Background suppression 15...210 mm Stainless steel V2A IO Link only Pinpoint LED, red 640 nm


Connection and Mounting: M12 4-pin
Output: Light-on/IO-Link + Dark-on
Polarity: PNP
