ISHR-M18MP-NMS-A0
| Operating range | 10...250 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Sensitivity adjustment | IO-Link only |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustment | 20...250 mm |
| Temperature range | -25...+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Background suppression |
| Sensing range max. | 10...275 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

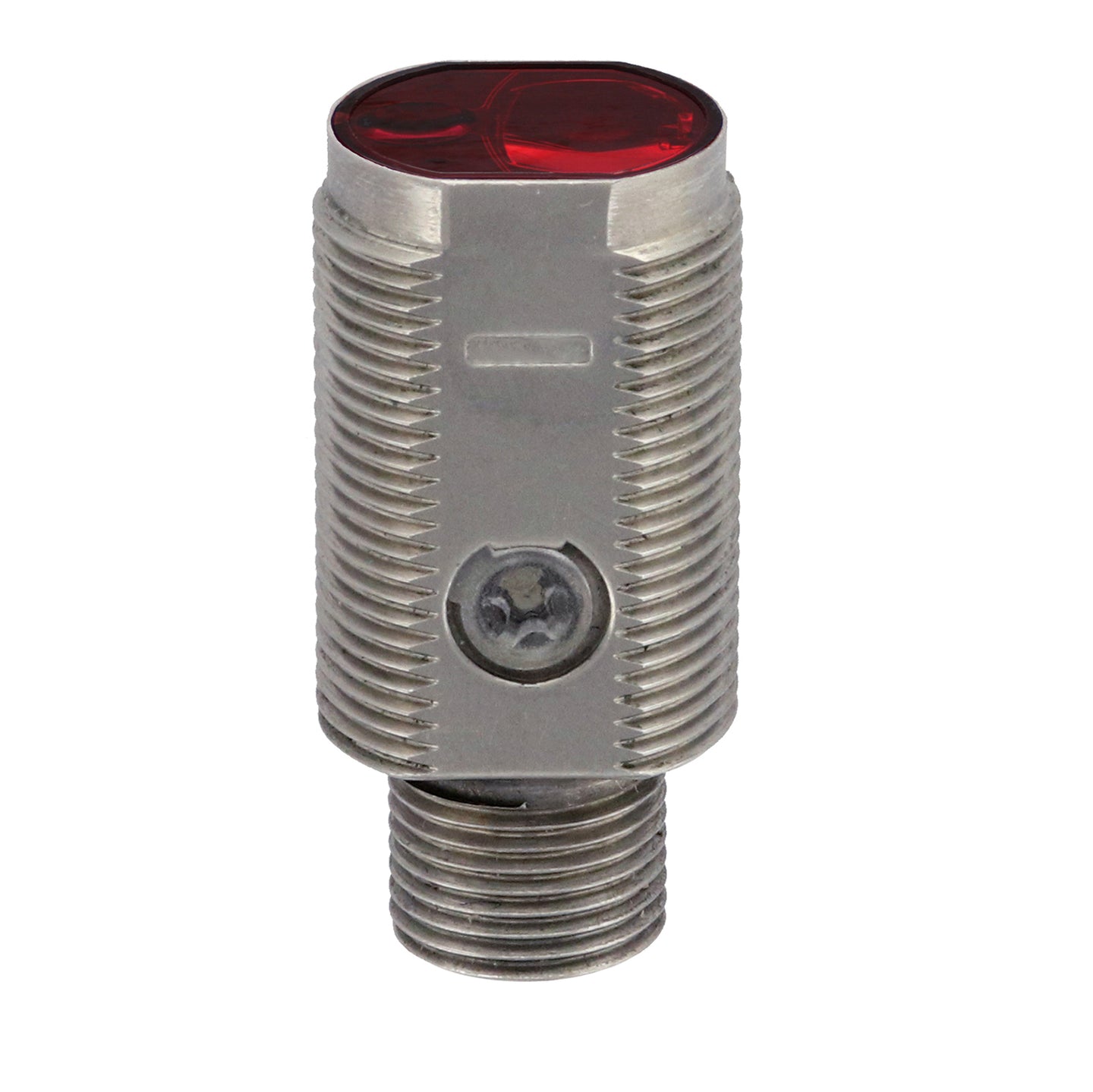

Photoelectrics Smart Sensor Basic-Smart-Background-suppression-10250-mm-Stainless-steel-V2A-IO-Link-only-Pinpoint-LED-red-640-nm ISHR-M18MP-NMS-A0
Basic Smart Background suppression 10...250 mm Stainless steel V2A IO Link only Pinpoint LED, red 640 nm
SKU: ISHR-M18MP-NMS-A0
Regular price
$162.60
Secure Checkout
Need help? Click here to contact an expert
