Short Specifications

ISWE-M8MP-NSS-A0

Operating range 0...3 mm
Switching frequency max. 500 Hz
Supply voltage 18...30
Polarity PNP
Output OSS1/IO-Link + OSS2
Connection M12 4-pin
Housing size [mm] M8
Enclosure rating IP 67
Housing material Chrome-plated brass
Resolution 5 µm
Temperature range -25...+70°C
Sensor Height 66 mm
Mounting Embeddable
Interface IO-Link
Sensing range max. 0...3.3 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

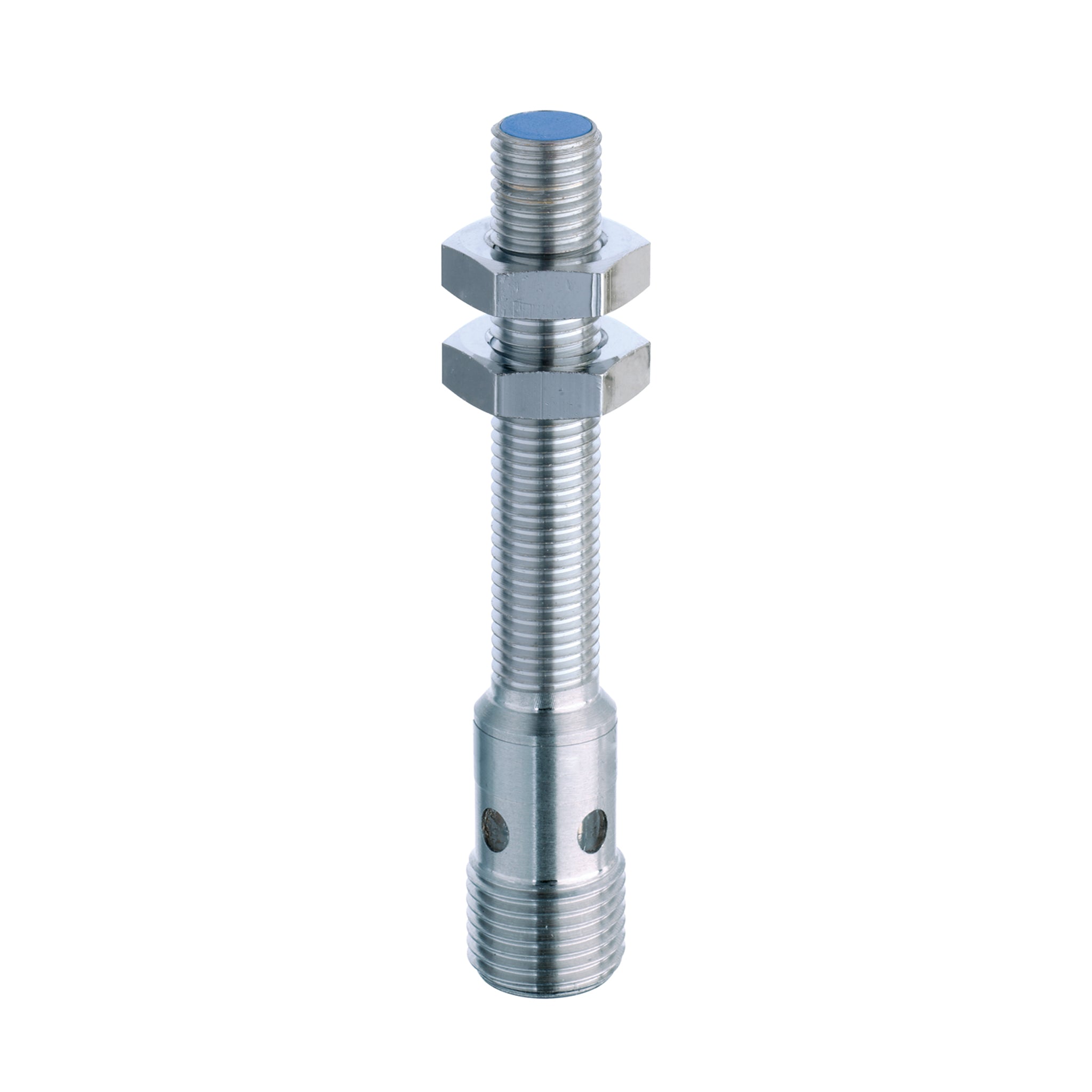

Basic Smart 0...3 mm

SKU: ISWE-M8MP-NSS-A0

Connection and Mounting: M12 4-pin|Embeddable
Polarity and Output: PNP|OSS1/IO-Link + OSS2
Sensor length: 66 mm

Estimated Delivery Time 2-3 weeks
