Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm
Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm

DW-AD-503-M30

Operating range 22 mm
Switching frequency max. 200 Hz
Supply voltage 10...30
Polarity PNP
Output Normally Open (NO)
Connection PVC, 2 m, 3 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Quasi-embeddable
Interface IO-Link
Type Format
Datasheet pdf
IODD zip zip
CE Certificate pdf
UKCA Certificate pdf
UL Certificate pdf

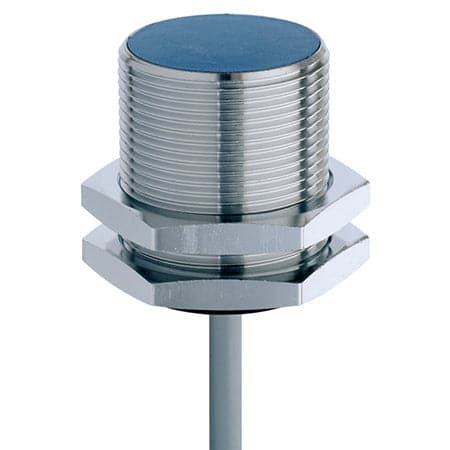

Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm

SKU: DW-AD-503-M30

Connection: PVC, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)
Sensor length: 60 mm
PVC, 2 m, 3 wire ! PNP|Normally Open (NO) ! 60 mm
PVC, 2 m, 3 wire ! PNP|Normally Open (NO) ! 35 mm
PVC, 2 m, 3 wire ! PNP|Normally Closed (NC) ! 60 mm
PVC, 2 m, 3 wire ! PNP|Normally Closed (NC) ! 35 mm
M12 4-pin ! PNP|Normally Closed (NC) ! 48.5 mm
PVC, 2 m, 3 wire ! NPN|Normally Open (NO) ! 60 mm
PVC, 2 m, 3 wire ! NPN|Normally Open (NO) ! 35 mm
PVC, 2 m, 3 wire ! NPN|Normally Closed (NC) ! 60 mm
PVC, 2 m, 3 wire ! NPN|Normally Closed (NC) ! 35 mm
M12 4-pin ! NPN|Normally Open (NO) ! 73.5 mm
M12 4-pin ! NPN|Normally Open (NO) ! 48.5 mm
M12 4-pin ! NPN|Normally Closed (NC) ! 73.5 mm
M12 4-pin ! NPN|Normally Closed (NC) ! 48.5 mm
Regular price From $98.35
In stock

Secure Checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Contact Icon

Need help? Click here to contact an expert

DW-AD-503-M30

Operating range 22 mm
Switching frequency max. 200 Hz
Supply voltage 10...30
Polarity PNP
Output Normally Open (NO)
Connection PVC, 2 m, 3 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Quasi-embeddable
Interface IO-Link
Type Format
Datasheet pdf
IODD zip zip
CE Certificate pdf
UKCA Certificate pdf
UL Certificate pdf
