DW-AD-503-M18

Operating range 12 mm
Switching frequency max. 600 Hz
Supply voltage 10...30
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PVC, 2 m, 3 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 51 mm
Mounting Quasi-embeddable
Interface IO-Link
Type Format
Datasheet pdf
IODD zip zip
CE Certificate pdf
UKCA Certificate pdf
UL Certificate pdf
Inductives Sensor Basic-Extra-Distance-Series-500-M18-Quasi-embeddable-12-mm DW-AD-503-M18

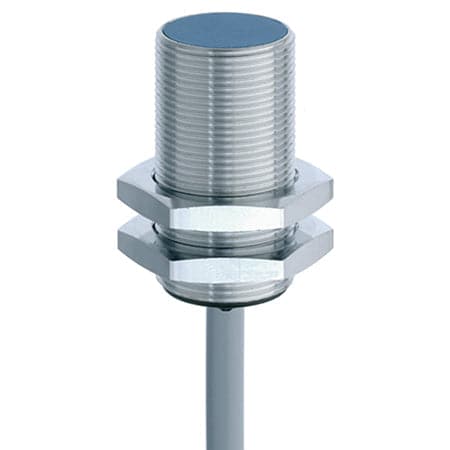

Basic Extra Distance Series 500 M18 Quasi embeddable 12 mm

SKU: DW-AD-503-M18

Connection: PVC, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length: 51 mm
PVC, 2 m, 3 wire ! PNP|Normally Open (NO)/IO-Link ! 51 mm

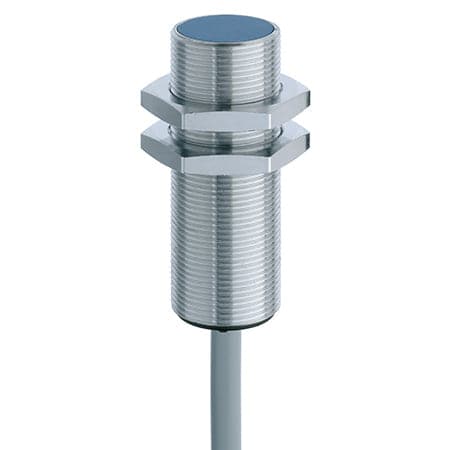

PVC, 2 m, 3 wire ! PNP|Normally Open (NO)/IO-Link ! 36 mm
PVC, 2 m, 3 wire ! PNP|Normally Closed (NC) ! 51 mm
PVC, 2 m, 3 wire ! PNP|Normally Closed (NC) ! 36 mm

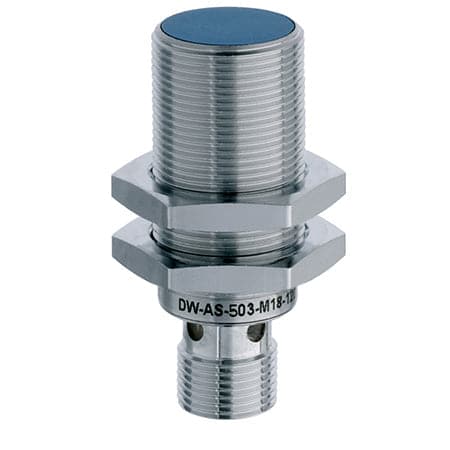

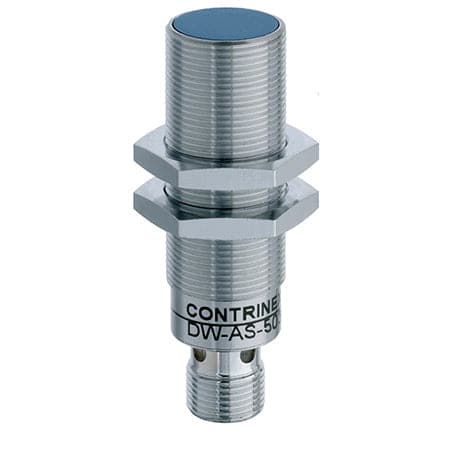

M12 4-pin ! PNP|Normally Open (NO)/IO-Link ! 63.5 mm
M12 4-pin ! PNP|Normally Open (NO)/IO-Link ! 48.5 mm
M12 4-pin ! PNP|Normally Closed (NC) ! 63.5 mm
M12 4-pin ! PNP|Normally Closed (NC) ! 48.5 mm
PVC, 2 m, 3 wire ! NPN|Normally Open (NO) ! 51 mm
PVC, 2 m, 3 wire ! NPN|Normally Open (NO) ! 36 mm
PVC, 2 m, 3 wire ! NPN|Normally Closed (NC) ! 51 mm
PVC, 2 m, 3 wire ! NPN|Normally Closed (NC) ! 36 mm
M12 4-pin ! NPN|Normally Open (NO) ! 63.5 mm
M12 4-pin ! NPN|Normally Open (NO) ! 48.5 mm
M12 4-pin ! NPN|Normally Closed (NC) ! 63.5 mm
M12 4-pin ! NPN|Normally Closed (NC) ! 48.5 mm
Regular price From $92.25
Re-stocking soon

Estimated Delivery Time 2-3 weeks
