Short Specifications


Operating range 20 mm
Switching frequency max. 100 Hz
Supply voltage 10...30
Polarity PNP
Output Changeover (NO/NC)/IO-Link
Connection M12 4-pin
Housing size [mm] 40 x 40 (C44)
Enclosure rating IP 68 / IP 69K
Housing material PA GF
Temperature range -25...+85°C
Sensor Height 67 mm
Mounting Embeddable
Interface IO-Link


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

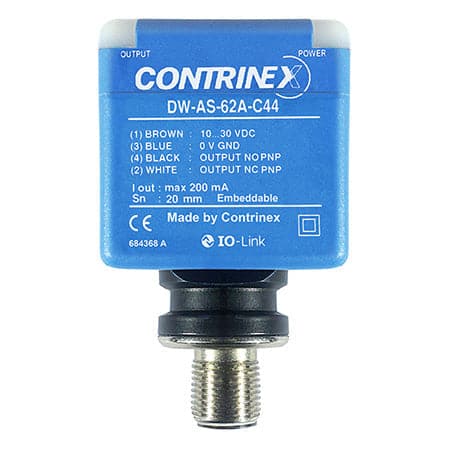

Basic Classics Series 600 40 x 40 (C44) Embeddable 20 mm

SKU: DW-AS-62A-C44

Connection: M12 4-pin
Polarity and Output: PNP|Changeover (NO/NC)/IO-Link
Sensor length: 67 mm
Sale price$61.35
Re-stocking soon

Estimated Delivery Time 2-3 weeks
