Short Specifications


Operating range 2 mm
Switching frequency max. 5000 Hz
Supply voltage 10...30
Polarity NPN
Output Normally Open (NO)
Connection PVC, 2 m, 3 wire
Housing size [mm] Ø 6.5
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Embeddable
Interface Standard output


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

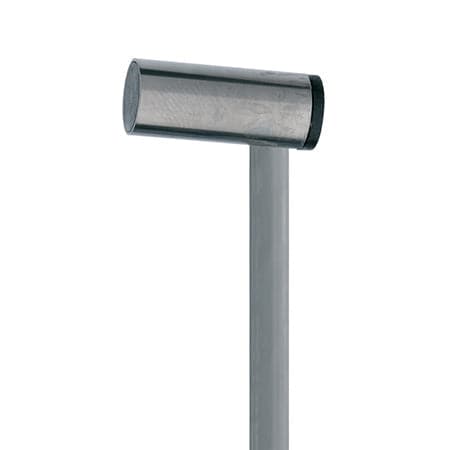

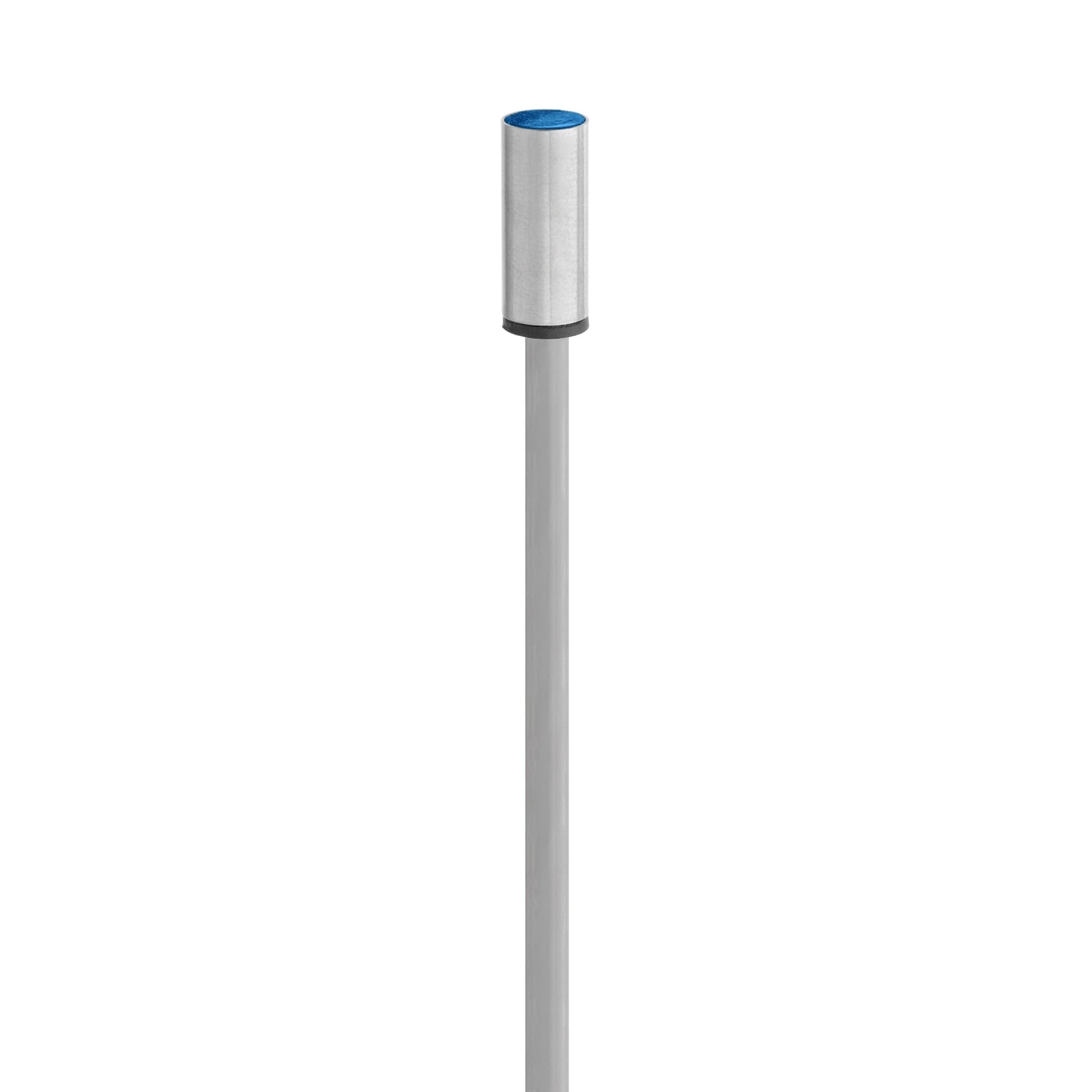

Basic Classics Series 600 Ø 6.5 Embeddable 2 mm

SKU: DW-AD-621-065

Connection: PVC, 2 m, 3 wire
Polarity and Output: NPN|Normally Open (NO)
Sensor length and Mounting Type: 35 mm | Straight
