Short Specifications

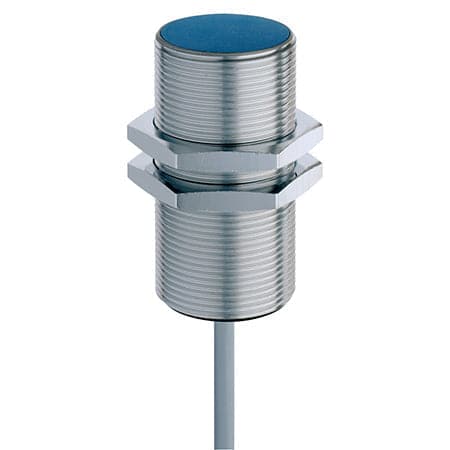

DW-AD-509-M30

Operating range 0...20 mm
Switching frequency max. 200 Hz
Supply voltage 10...30
Polarity Analog
Output Voltage + Current
Connection PUR, 2 m, 4 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Quasi-embeddable

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

Analog output Extra Distance Series 500 M30 Quasi embeddable 0...20 mm 0...5 V + 1...5 mA

SKU: DW-AD-509-M30

Connection: PUR, 2 m, 4 wire
Polarity and Output: Analog|Voltage + Current
Sensor length: 60 mm
Price:
Sale price$135.85
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
