Short Specifications


Operating range 0...20 mm
Switching frequency max. 200 Hz
Supply voltage 15...30
Polarity Analog
Output Voltage + Current
Connection PUR, 2 m, 4 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Quasi-embeddable


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

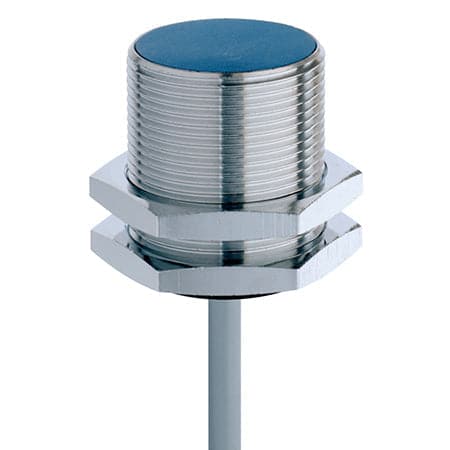

Analog output Extra Distance Series 500 M30 Quasi embeddable 0...20 mm 0...10 V + 4...20 mA

SKU: DW-AD-509-M30-320

Connection: PUR, 2 m, 4 wire
Polarity and Output: Analog|Voltage + Current
Sensor length: 35 mm
Sale price$140.45
Re-stocking soon

Estimated Delivery Time 2-3 weeks
