Short Specifications


Operating range 0...6 mm
Switching frequency max. 1000 Hz
Supply voltage 15...30
Polarity Analog
Output Voltage
Connection PUR, 2 m, 3 wire
Housing size [mm] M12
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Quasi-embeddable


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

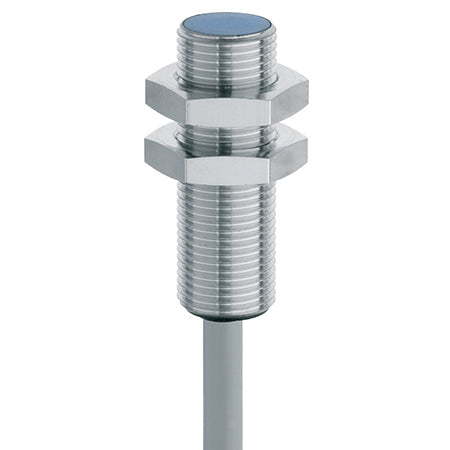

Analog output Extra Distance Series 500 M12 Quasi embeddable 0...6 mm 0...10 V

SKU: DW-AD-509-M12-320

Connection: PUR, 2 m, 3 wire
Polarity and Output: Analog|Voltage
Sensor length: 35 mm
Sale price$107.10
Re-stocking soon

Estimated Delivery Time 2-3 weeks
