Short Specifications



Operating range 0...10 mm
Switching frequency max. 1000 Hz
Supply voltage 18...32
Polarity PNP/Analog
Output IO-Link + Voltage
Repeatability < 0.006 mm
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Resolution 4 µm
Temperature range -25...+70°C
Sensor Height 63.5 mm
Mounting Quasi-embeddable
Interface IO-Link
Sensing range max. 0...11 mm


Type Format
IODD zip pdf

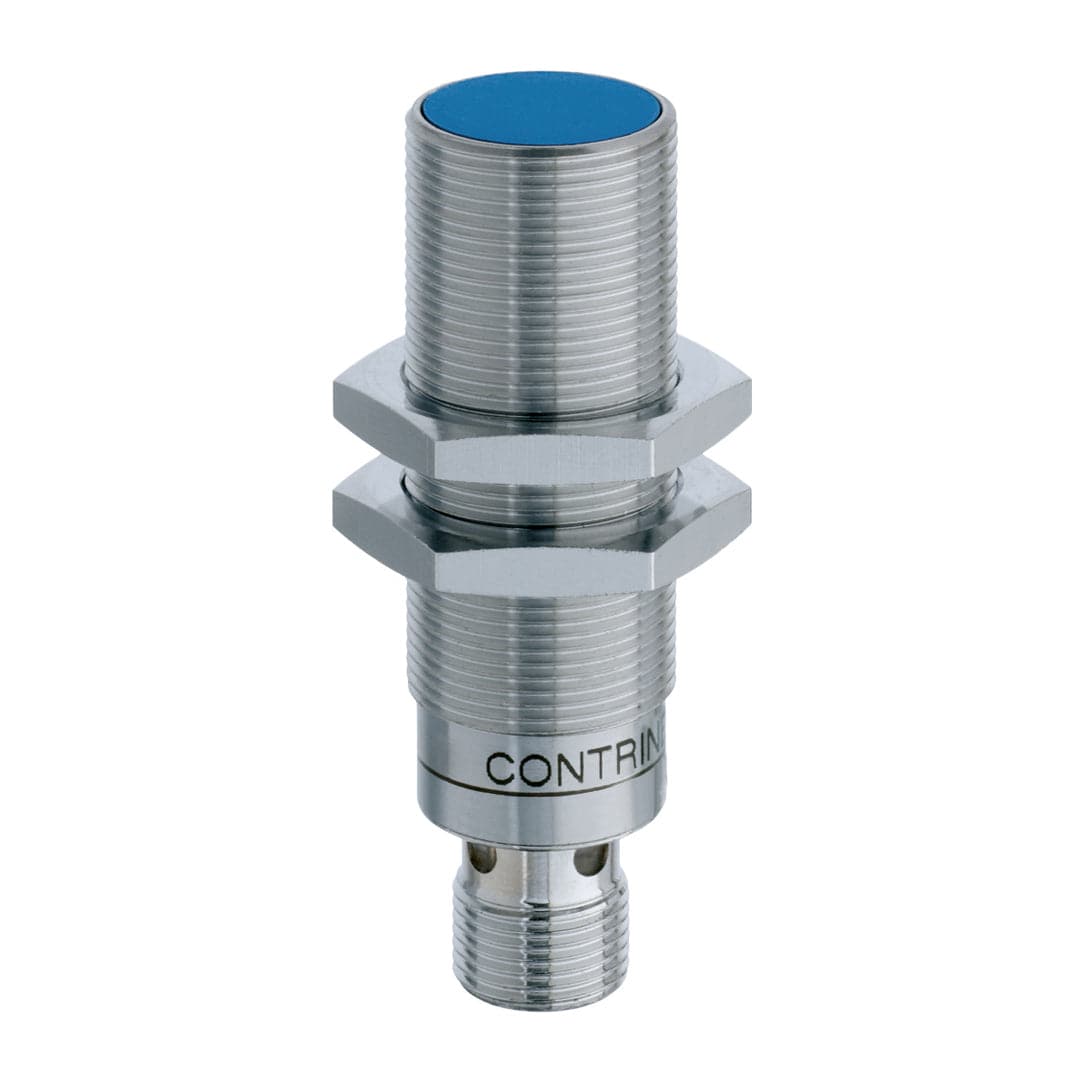

AMS Smart 0...10 mm


Connection and Mounting: M12 4-pin|Quasi-embeddable
Polarity and Output: PNP/Analog|IO-Link + Voltage
Sensor length: 63.5 mm
