Preliminary
IADR-C23MP-NMS-A2
| Operating range | 15...250 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + 0...10 V |
| Sensitivity adjustment | IO-Link only |
| Connection | M8 4-pin |
| Housing size [mm] | 21.5 x 33 (C23) |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 15...150 mm |
| Temperature range | -25...+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Analog measurement |
| Sensing range max. | 15...150 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
Photoelectrics Smart Sensor Advanced-Smart-Analog-measurement-15250-mm-Stainless-steel-V2A-IO-Link-only-Pinpoint-LED-red-640-nm IADR-C23MP-NMS-A2

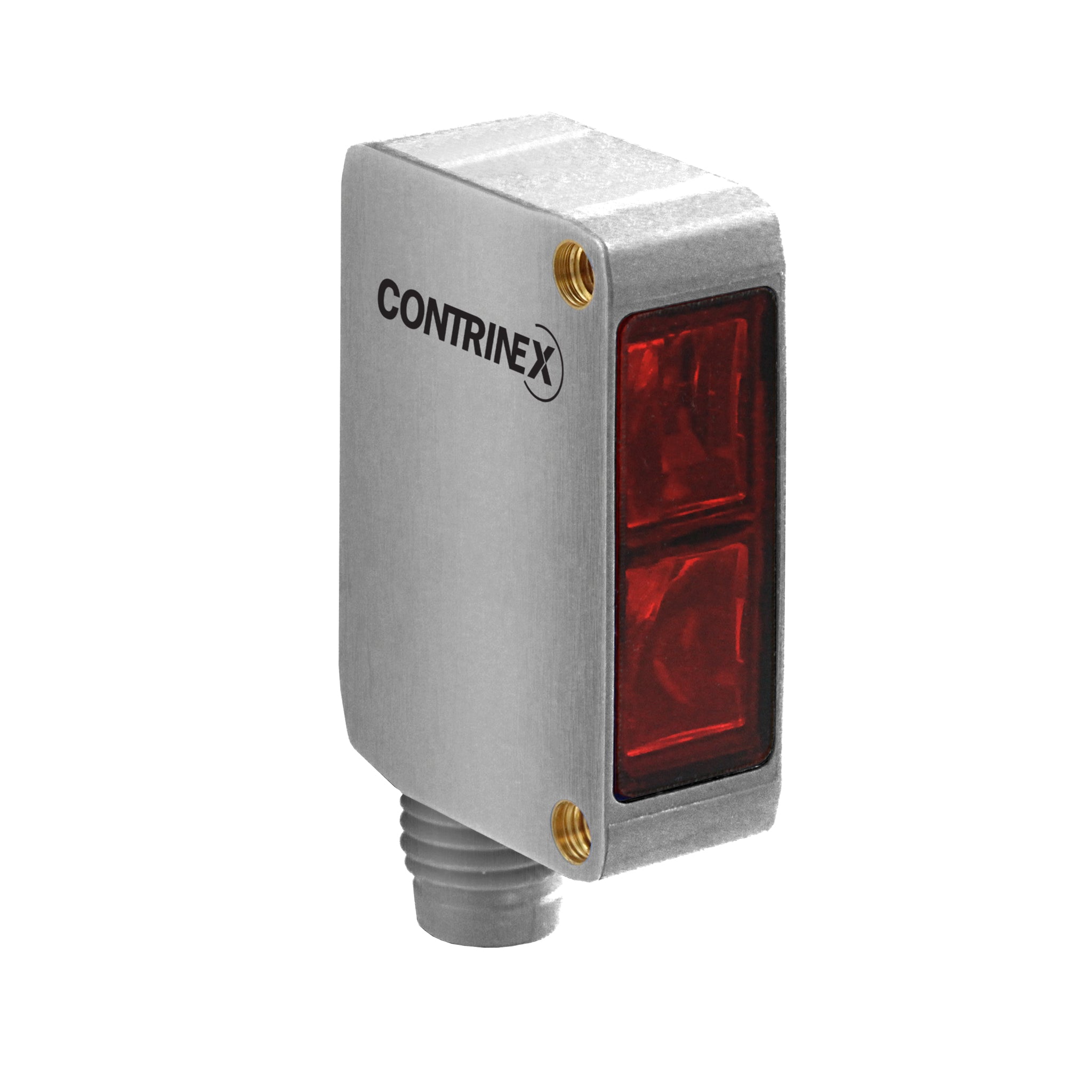

Advanced Smart Analog measurement 15...250 mm Stainless steel V2A IO Link only Pinpoint LED, red 640 nm
SKU: IADR-C23MP-NMS-A2
