Short Specifications

Preliminary

IADR-C23MP-NMS-A2

Operating range 25...150 mm
Switching frequency max. 500 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on/IO-Link + 0...10 V
Sensitivity adjustment IO-Link only
Connection M12 4-pin
Housing size [mm] 20 x 30 (C23)
Enclosure rating IP 67
Housing material Stainless-steel V2A
Sensitivity Range Adjustm 15...150 mm
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface IO-Link
Operating principle Analog measurement
Sensing range max. 15...150 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

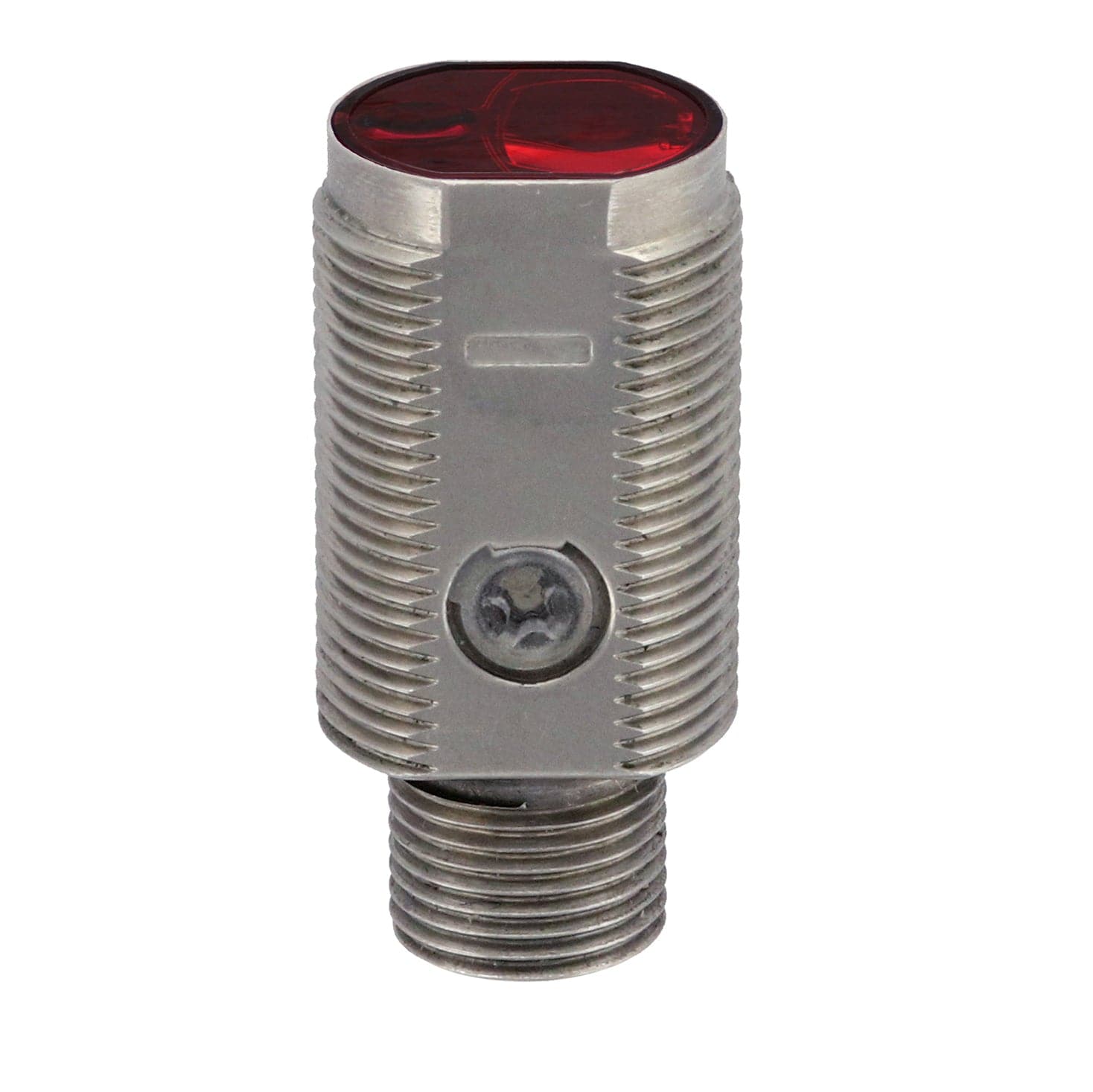

Advanced Smart Analog measurement 15...150 mm Stainless steel V2A IO Link only LED, red 630 nm

SKU: IADR-C23MP-NMS-A2

Connection and Mounting: M12 4-pin
Output: Light-on/IO-Link + 0...10 V
Polarity: PNP
