CAM-3TIQC-C99S-SF-A
| Operating principle | Time of Flight (ToF) |
| Resolution | QVGA |
| Sensing range max. | 300...7500 mm |
| Field of view | 37° x 27.9° |
| Light source | Vcels, infrared 850 nm |
| Max Frame Rate | 20 FPS |
| Interface | WI-FI x TCP/IP x IO-Link |
| Socket | 2x M12 |
| Connection | M12 Male 5-PIN A-coded, M12 Fem. 4-Pin D-coded |
| Output | DATA (SIO Q1) IOLINK + DATA (SIO Q2) + Trigger input |
| Polarity | PNP/NPN configurable |
| Supply voltage | 18...30 |
| Housing size [mm] | 92 x 92 (C99) |
| Sensor Height | 81 mm |
| Housing material | Aluminium / PC / PA / PMMA |
| Enclosure rating | IP 65 / IP 67 |
| Temperature range | 0...+50°C |
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| Software manual |
|
| IODD |
|
| Firmware release note |
|
| CE certificate |
|
| UKCA certificate |
|
| FCC certificate |
|
| Brochure |
|
| Quick Start Guide |
|

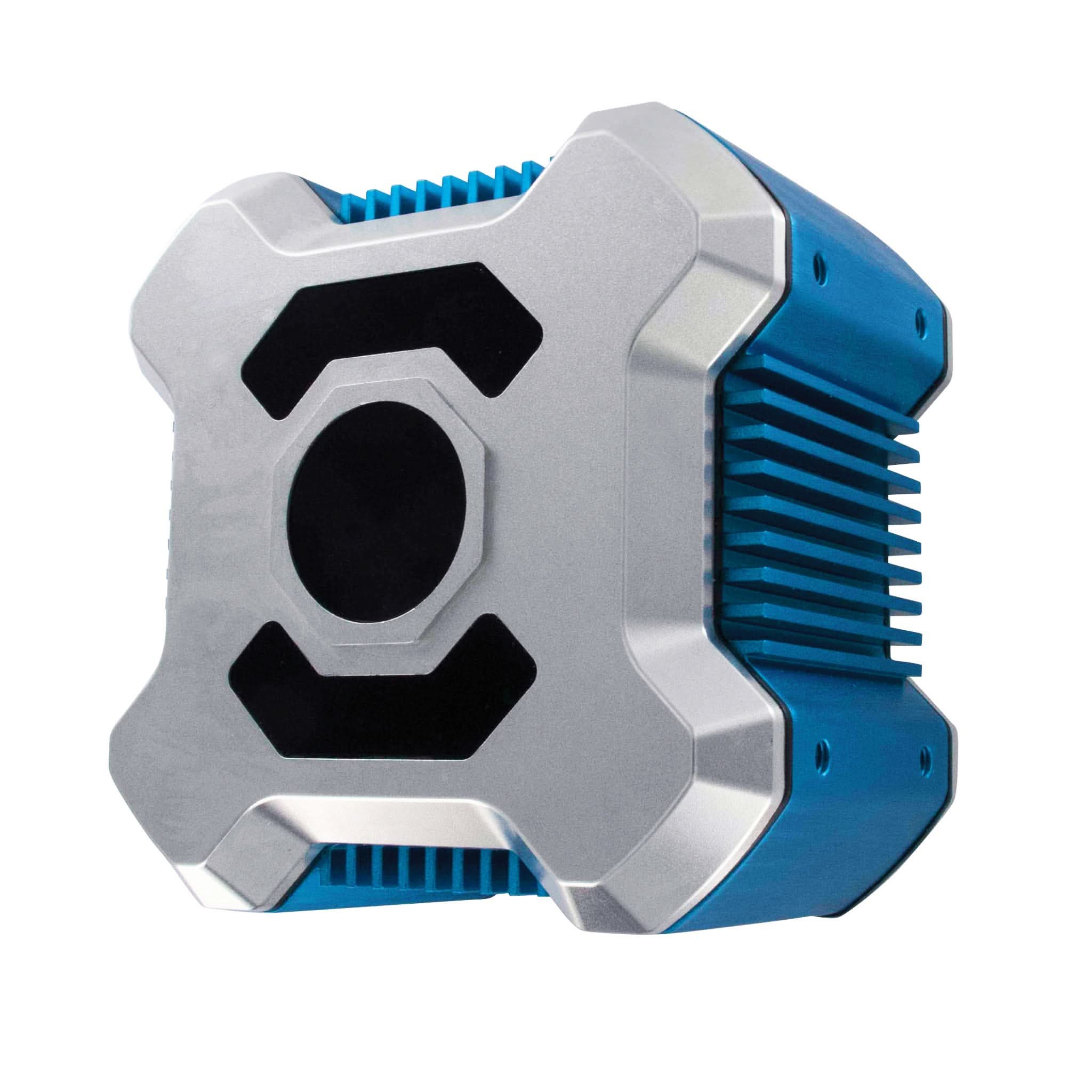

3D ToF Smart Camera QVGA 92 x 92 (C99) WI FI x TCP/IP x IO Link
SKU: CAM-3TIQC-C99S-SF-A
Regular price
$1,500.00
Secure Checkout
Need help? Click here to contact an expert
