Preliminary
DW-DD-605-M30-1533
| Operating range | 10 mm |
| Switching frequency max. | 600 Hz |
| Supply voltage | 10...65 |
| Polarity | 2-wire |
| Output | Normally Open (NO) |
| Connection | PVC, 2 m, 2 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
| Firmware Release Note |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
| CQC Certificate |
|

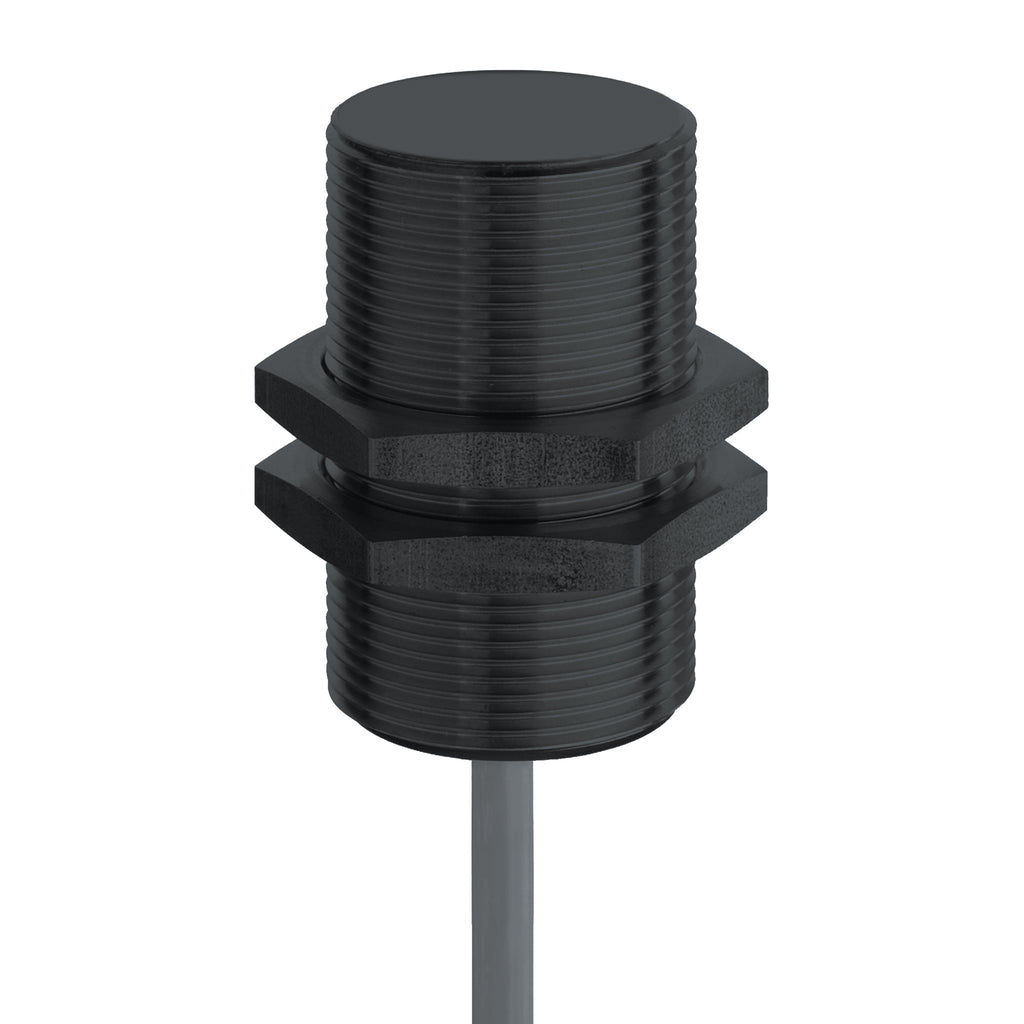

Inductives Sensor 2-wire-Classics-Series-600-M30-Embeddable-10-mm-1065-VDC DW-DD-605-M30-1533

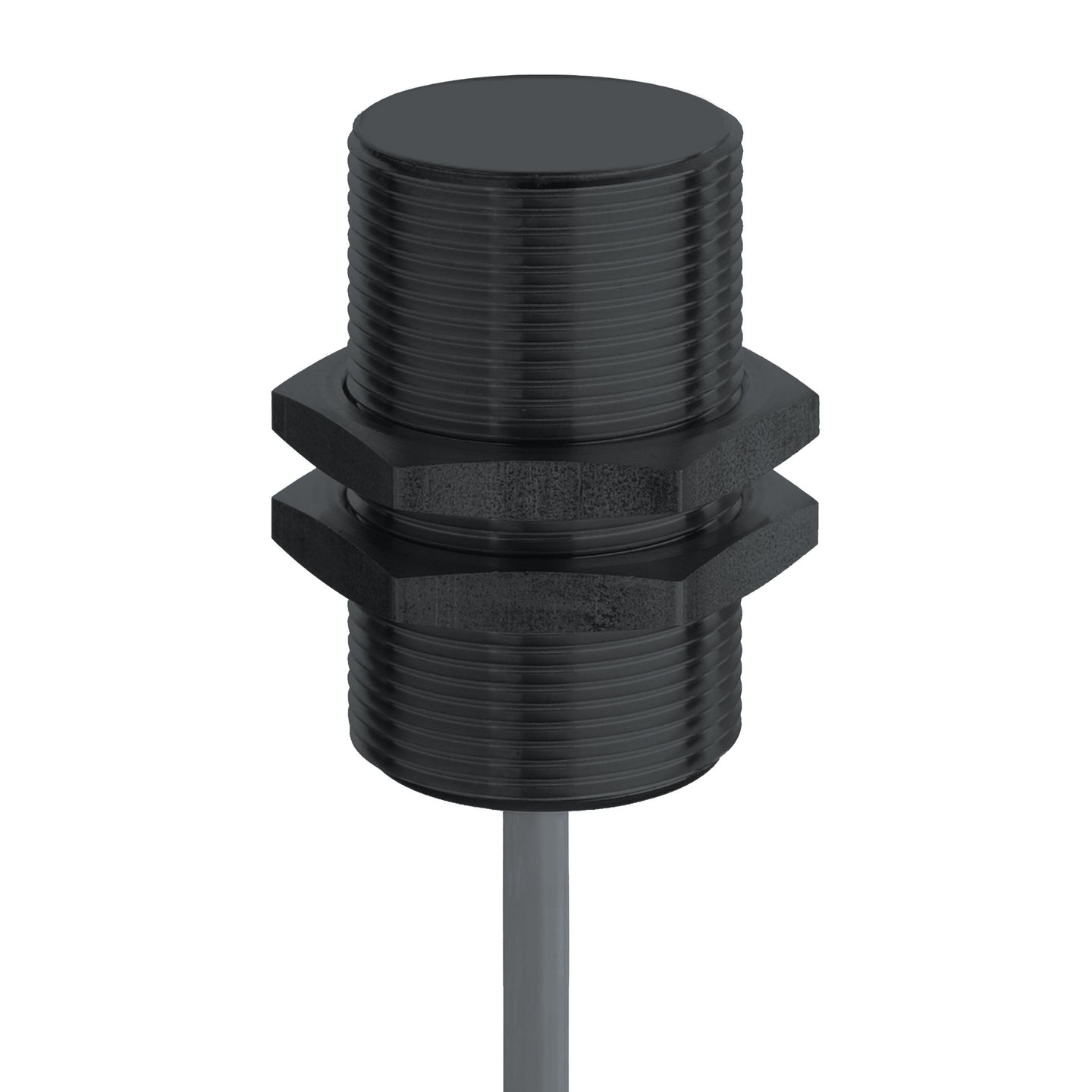

2 Wire Weld-immune Coated M30 Embeddable 10 mm 10...65 VDC
SKU: DW-DD-605-M30-1533
