Short Specifications

DW-AD-608-M30

Operating range 10 mm
Switching frequency max. 25 Hz AC / 600 Hz DC
Supply voltage 20...265/10...320
Polarity 2-wire
Output Normally Closed (NC)
Connection PVC, 2 m, 2 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 50 mm
Mounting Embeddable

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

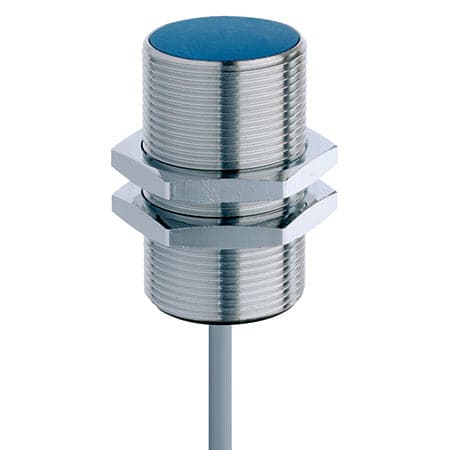

2 wire Classics Series 600 M30 Embeddable 10 mm 20...265/10...320 VAC/VDC


Connection: PVC, 2 m, 2 wire
Polarity and Output: 2-wire|Normally Closed (NC)
Sensor length: 50 mm
Price:
Sale price$69.60
Stock:
In stock

Estimated Delivery Time 2-3 weeks

• For further information, please call +1 972-685-3010
• Para más información, llame al +52 55 56 110 110
• Para maiores informações, favor ligar para +55 19 3886 667
• To contact us by e-mail, please click here

Description
