DW-DD-605-M30

Operating range 10 mm
Switching frequency max. 600 Hz
Supply voltage 10...65
Polarity 2-wire
Output Normally Open (NO)
Connection PVC, 2 m, 2 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 50 mm
Mounting Embeddable
Type Format
Datasheet pdf
CE Certificate pdf
UKCA Certificate pdf
UL Certificate pdf
CQC Certificate pdf
Inductives Sensor 2-wire-Classics-Series-600-M30-Embeddable-10-mm-1065-VDC DW-DD-605-M30

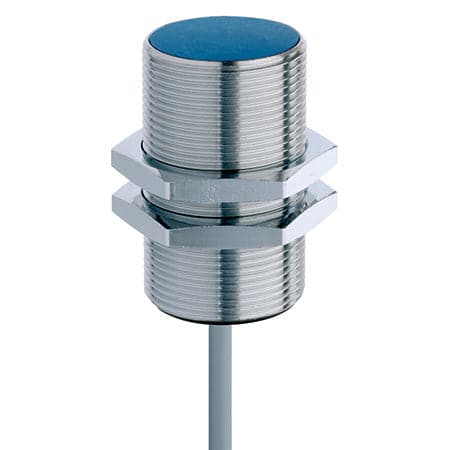

2 wire Classics Series 600 M30 Embeddable 10 mm 10...65 VDC

SKU: DW-DD-605-M30

Connection: PVC, 2 m, 2 wire
Polarity and Output: 2-wire|Normally Open (NO)
Sensor length: 50 mm
PVC, 2 m, 2 wire ! 2-wire|Normally Open (NO) ! 50 mm

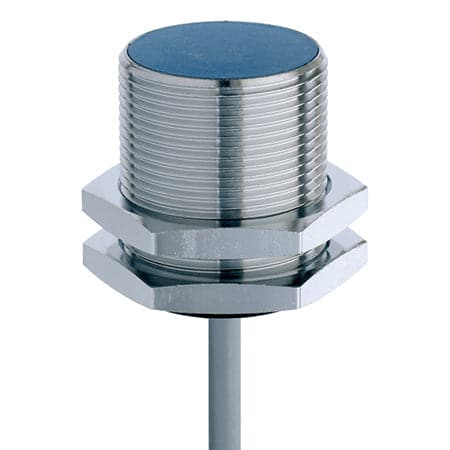

PVC, 2 m, 2 wire ! 2-wire|Normally Open (NO) ! 35 mm
PVC, 2 m, 2 wire ! 2-wire|Normally Closed (NC) ! 50 mm
PVC, 2 m, 2 wire ! 2-wire|Normally Closed (NC) ! 35 mm

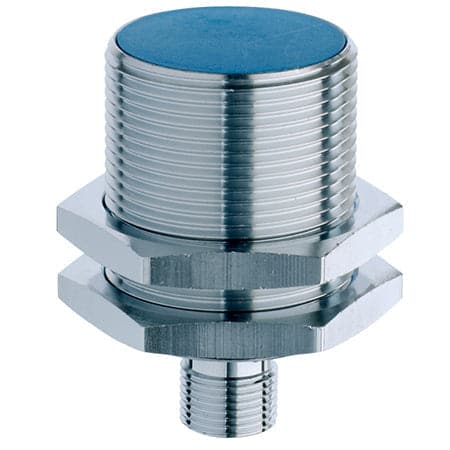

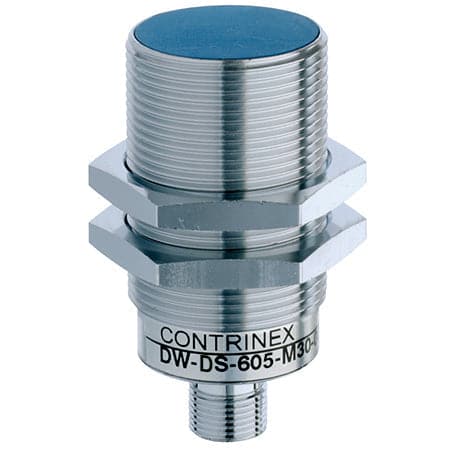

M12 4-pin ! 2-wire|Normally Open (NO) ! 63.5 mm
M12 4-pin ! 2-wire|Normally Open (NO) ! 48.5 mm
M12 4-pin ! 2-wire|Normally Closed (NC) ! 63.5 mm
M12 4-pin ! 2-wire|Normally Closed (NC) ! 48.5 mm
Regular price From $50.00
Re-stocking soon

Estimated Delivery Time 2-3 weeks
