DW-AD-605-M30
| Operating range | 10 mm |
| Switching frequency max. | 400 Hz |
| Supply voltage | 7.7...9 |
| Polarity | NAMUR |
| Output | Current |
| Connection | PVC, 2 m, 2 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

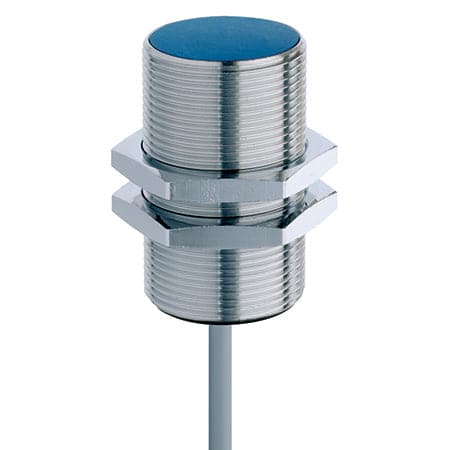

Inductives Sensor 2-wire-Classics-Series-600-M30-Embeddable-10-mm-1-22-mA-779-VDC DW-AD-605-M30
2 wire Classics Series 600 M30 Embeddable 10 mm ≤ 1 / ≥ 2.2 mA 7.7...9 VDC
SKU: DW-AD-605-M30
