DW-AD-627-M12
| Operating range | 4 mm |
| Switching frequency max. | 25 Hz AC / 2000 Hz DC |
| Supply voltage | 20...265/10...300 |
| Polarity | 2-wire |
| Output | Normally Open (NO) |
| Connection | PVC, 2 m, 2 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| CQC Certificate |
|

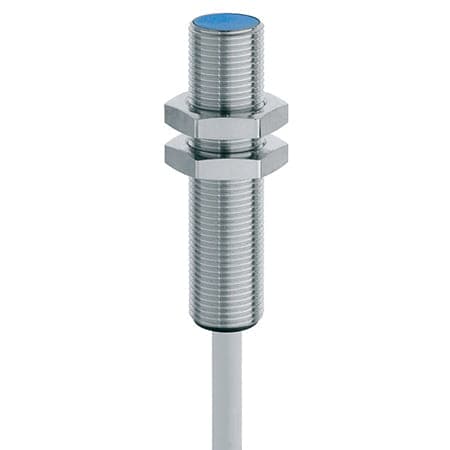

Inductives Sensor 2-wire-Classics-Series-600-M12-Embeddable-4-mm-20265-10300-VAC-VDC DW-AD-627-M12
2 wire Classics Series 600 M12 Embeddable 4 mm 20...265/10...300 VAC/VDC
SKU: DW-AD-627-M12
Regular price
From $80.95
Secure Checkout
Need help? Click here to contact an expert
DW-AD-627-M12
| Operating range | 4 mm |
| Switching frequency max. | 25 Hz AC / 2000 Hz DC |
| Supply voltage | 20...265/10...300 |
| Polarity | 2-wire |
| Output | Normally Open (NO) |
| Connection | PVC, 2 m, 2 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| CQC Certificate |
|
Inductives Sensor 2-wire-Classics-Series-600-M12-Embeddable-4-mm-20265-10300-VAC-VDC DW-AD-627-M12
