Short Specifications

DW-DD-625-065

Operating range 2 mm
Switching frequency max. 5000 Hz
Supply voltage 10...65
Polarity 2-wire
Output Normally Open (NO)
Connection PVC, 2 m, 2 wire
Housing size [mm] Ø 6.5
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Embeddable

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf
CQC certificate pdf

3D CAD Library

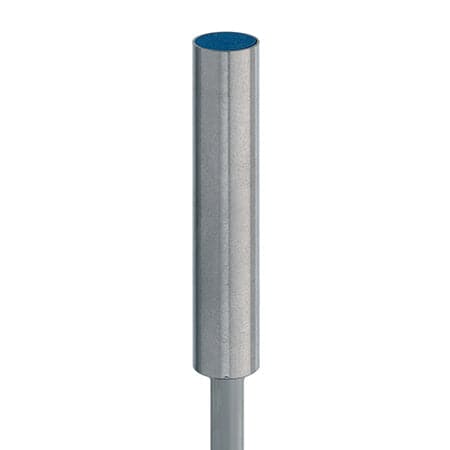

2 wire Classics Series 600 Ø 6.5 Embeddable 2 mm 10...65 VDC


Connection: PVC, 2 m, 2 wire
Polarity and Output: 2-wire|Normally Open (NO)
Sensor length and Mounting Type: 35 mm | Straight
Price:
Sale price$72.95

Estimated Delivery Time 2-3 weeks

• For further information, please call +1 972-685-3010
• Para más información, llame al +52 55 56 110 110
• Para maiores informações, favor ligar para +55 19 3886 667
• To contact us by e-mail, please click here
