Short Specifications

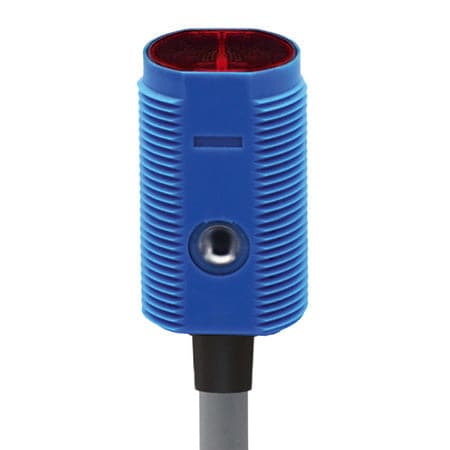

LRR-M18PA-NMK-101

Operating range 30...5500 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment No
Connection PVC, 2 m, 4 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material ABS
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface Standard output
Operating principle Reflex
Sensing range max. 20...7000 mm

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

Standard Reflex M18 30...5500 mm ABS No LED, red 630 nm

SKU: LRR-M18PA-NMK-101

Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity: NPN
Price:
Sale price$56.20
Stock:
In stock

Estimated Delivery Time 2-3 weeks
