Short Specifications

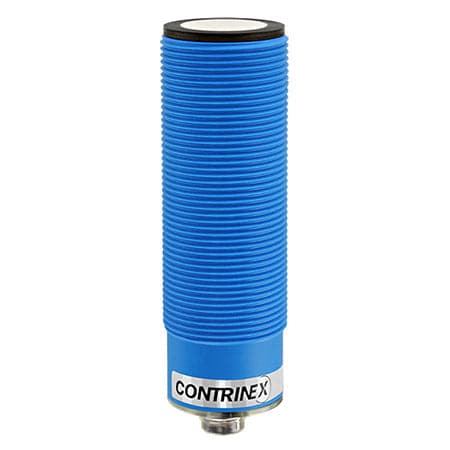

UST-M30PS-TLS-403
| Operating range | 350...3500 mm |
| Switching frequency max. | 2 Hz |
| Supply voltage | 12...30 |
| Product Range | Standard body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
Downloads
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
3D CAD Library
Estimated Delivery Time 2-3 weeks
