Short Specifications

DTR-N01PA-NMK-139

Operating range 1...30 mm
Supply voltage 10...30
Repeatability ± 2 mm
Polarity PNP/Analog
Output Light-on/IO-Link + 0.1...2.6 V
Sensitivity adjustment No
Connection PUR, 2 m, 4 wire
Housing size [mm] 4.55 x 5
Sensitivity Range Adjustm 1...25 mm
Resolution 3.6 µm
Temperature range -25...+65°C
Sensor Height 15 mm
Light source LED, red 630 nm
Operating principle Diffuse
Sensing range max. 0.5...35 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

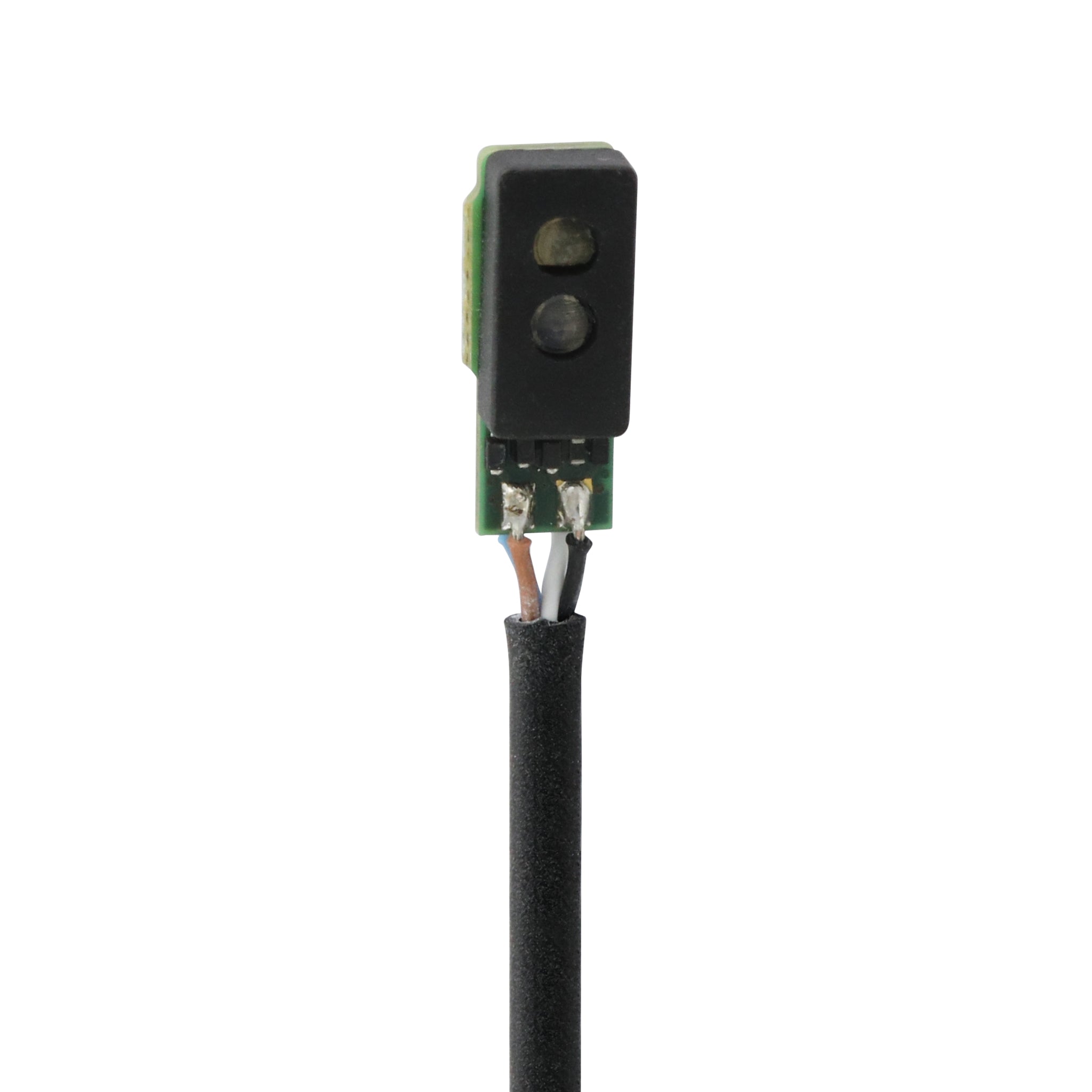

Miniature Diffuse 4.55 x 5 1...30 mm No LED, red 630 nm

SKU: DTR-N01PA-NMK-139

Connection: PUR, 2 m, 4 wire
Output: Light-on/IO-Link + 0.1...2.6 V
Polarity: PNP/Analog
Price:
Sale price$197.03
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
