Short Specifications

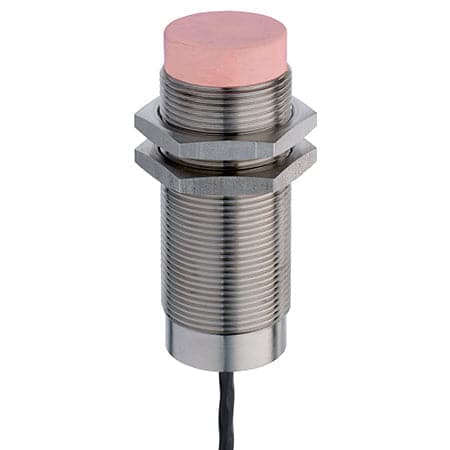

DW-HD-613-M30-310
| Operating range | 15 mm |
| Switching frequency max. | 200 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | PTFE, 2 m, 3 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | 0...+180°C |
| Sensor Height | 83 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
Downloads
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
3D CAD Library
