Short Specifications

DW-AV-703-P12G-276

Operating range 1.5 mm
Switching frequency max. 850 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 500 bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PUR, 0.2 m, 3 wire + M12 4-pin
Housing size [mm] M12
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V4A
Temperature range -25...+85°C
Sensor Height 48.5 mm
Mounting Embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

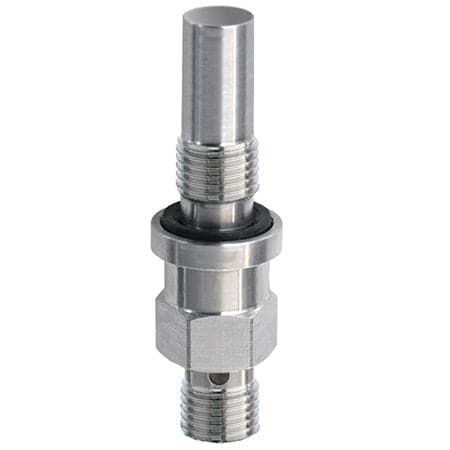

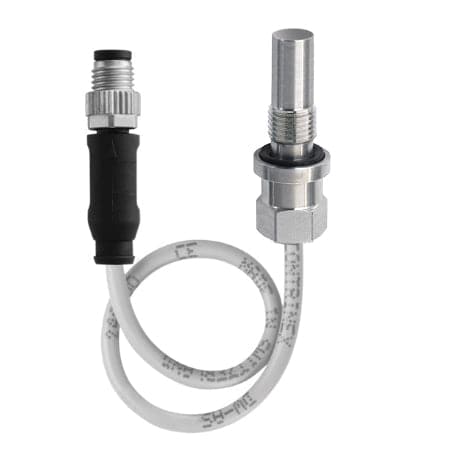

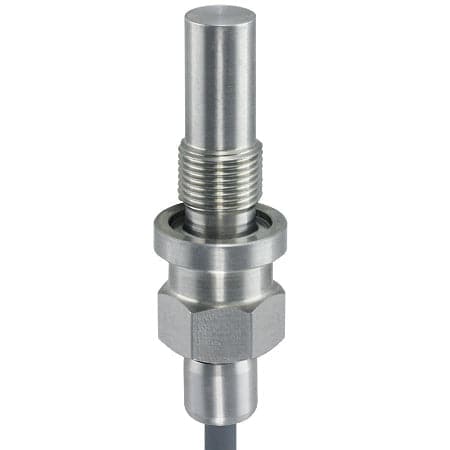

High pressure Full Inox Series 700 M12 Embeddable 1.5 mm

SKU: DW-AV-703-P12G-276

Connection: PUR, 0.2 m, 3 wire + M12 4-pin
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length and distance to thread: 48.5 mm|18 mm
Price:
Sale price$306.95
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
