Short Specifications

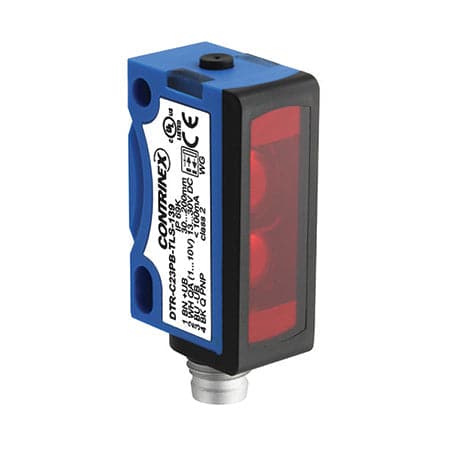

DTR-C23PB-TLS-129

Operating range 30...200 mm
Switching frequency max. 1000 Hz
Sensing Linearity ± 2 mm
Supply voltage 13...30
Repeatability < 1 mm
Polarity NPN
Output Light-on/Dark-on + 1...10 V
Sensitivity adjustment Teach button
Connection M8 4-pin
Housing size [mm] 20 x 34 (C23)
Enclosure rating IP 67 / IP 69K
Housing material ABS
Resolution 0.68 mm
Temperature range -20...+60°C
Light source LED, red 632 nm
Interface Standard output
Operating principle Distance diffuse

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

Distance Distance diffuse 20 x 34 (C23) 30...200 mm ABS Teach button LED, red 632 nm

SKU: DTR-C23PB-TLS-129

Connection: M8 4-pin
Output: Light-on/Dark-on + 1...10 V
Polarity: NPN
Price:
Sale price$271.40
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
