DW-AS-713-M12-967
| Operating range | 3 mm |
| Switching frequency max. | 400 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 80 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
Inductives Sensor Chip-immune-Full-Inox-Series-700-M12-Non-embeddable-3-mm DW-AS-713-M12-967

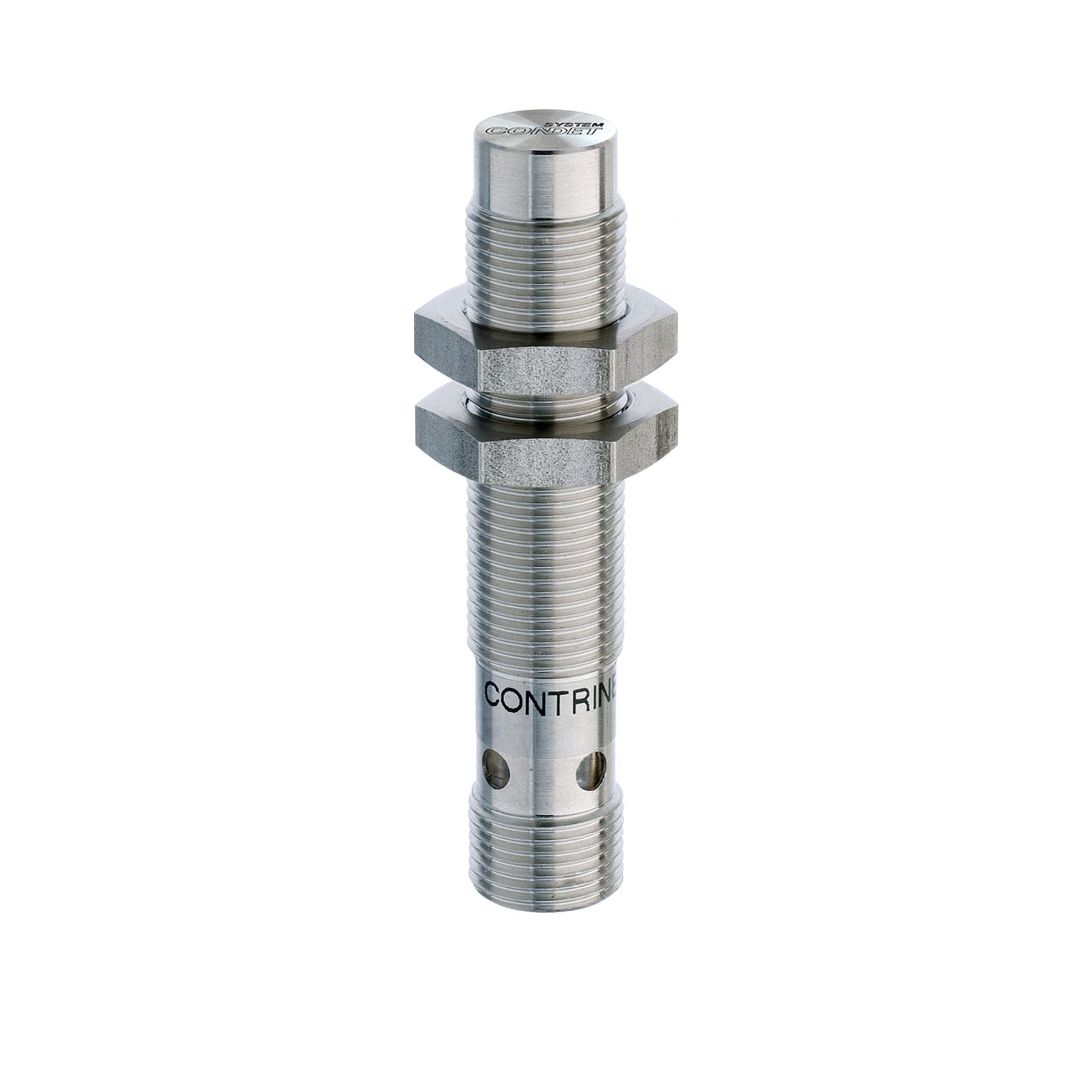

Chip immune Full Inox Series 700 M12 Non embeddable 3 mm
SKU: DW-AS-713-M12-967
Regular price
$164.15
Secure Checkout
