Photoelectric analog reflex sensors detect presence and orientation of caps on blood test-tubes

A German supplier of automated laboratory equipment for in-vitro diagnostics exploits the long operating distance and high resolution of analog Series 3#30 photoelectric sensors to detect the 1 mm signal bounces that indicate where the cap sits on the test-tube.

Customer Values

  • Economical, fast and absolutely reliable
  • Non-contact operation, so not subject to mechanical wear
  • Excellent performance combined with small size
  • Long service life
  • Sensors ready made-up and easy to use
  • Flexibility of solution

Specific Product Advantages

  • Large operating distance and signal resolution
  • Protection class IP 67
  • Outstanding performance on detection accuracy, speed and frequency

Customer Application

A new machine has the job of placing test-tubes in racks. To achieve this, bulk fed test-tubes are placed separately on a conveyor and then pushed into the sample racks. It is crucial that the test-tubes enter the racks the right way up. The cap sealing each small tube must be uppermost. However, the orientation of these blood test-tubes on the conveyor line is random – sometimes the cap is to the right, sometimes to the left.

The form and material of blood test-tubes makes measuring them quite problematic. They are round, transparent and filled with liquid in varying quantities. The contours are indistinct and there is a lack of plane surfaces. These are major challenges for most principles of measurement. However, instead of a solution based on laborious and costly camera-based systems or profile scanners, the customer seeks a method that will deliver results quickly and reliably, but also economically.

Customer Solution

Series 3130 analog reflex sensors with protection class IP 67 provide the solution that suits this medical environment.

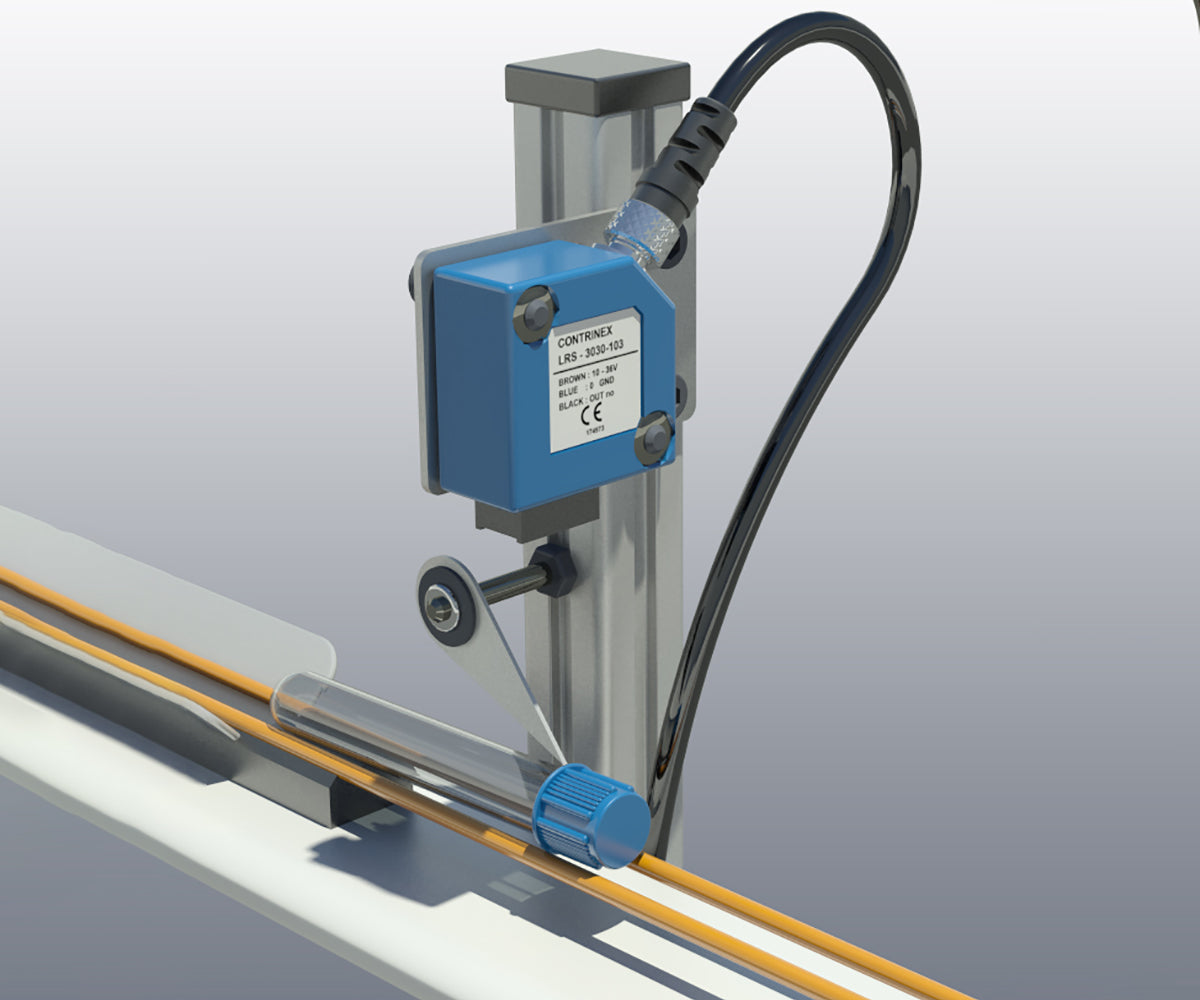

Test-tubes lying on the conveyor pass under a lightweight lever. This traces the contour of the test-tube, rising or falling accordingly. The side of the lever facing the photoelectric sensor is a plane surface, guaranteeing absolutely reliable measurement. The sensor detects the fitted cap by its 1 mm elevation above the test-tube. Every 20 ms, the controller polls analog signals from the sensor and determines the position of the cap mathematically. According to this measurement, the machine then turns the test-tube the right way up and pushes it into the rack. A test-tube without a cap is identified by the sensor as an error, since no significant bounce can be detected. In such cases the machine will be stopped. This method allows the equipment to handle one correctly orientated test-tube per second.
